INTELLIGENT COMBINED EFFECTS PEDAL
Equipped with Noise Gate, Boost
5Hs
Can be charged
2000mAh
Built-in tuner function, includes 40 preset slots for saving configurations
Supports Live/Preset operation modes

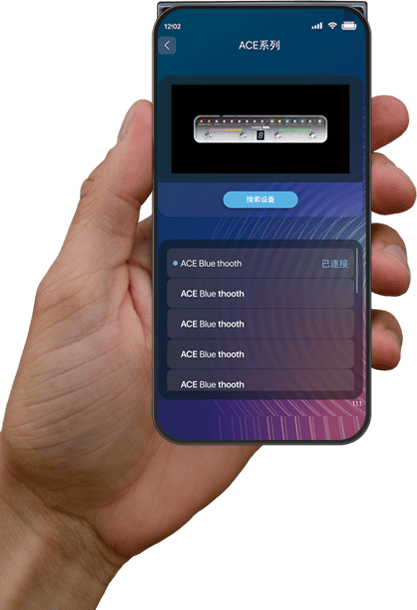

Press and hold footswitch C+D until the Bluetooth light flashes. Use your smart device to search for and connect to "ACE-100" via Bluetooth. Once successfully connected, the Bluetooth light will remain steady. At this point, Bluetooth audio can be played through ACE-100, and the Audota Studio App can also search for and connect to ACE-100, To disconnect Bluetooth, press and hold pedals C+D until the light turns off.
Using the included USB cable and an OTG adapter (sold separately), connect your mobile device (e.g.,smartphone) to the USB-C port of the ACE-100 to enable OTG digital recording. You can monitor the audio via the Out or Phones interface.
PRESET Mode： Cycle through presets.

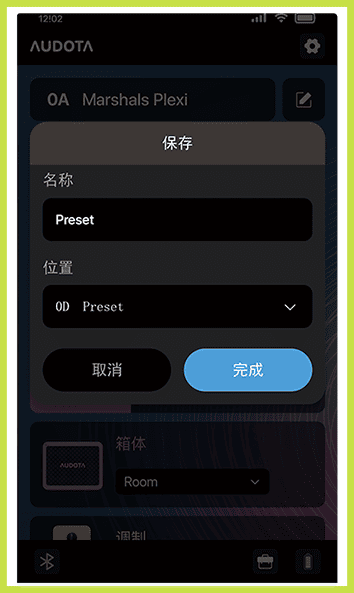

LIVE Mode：Toggle effects modules or save presets.
Press B+C simultaneously to switch between
LIVE/PRESET modes.

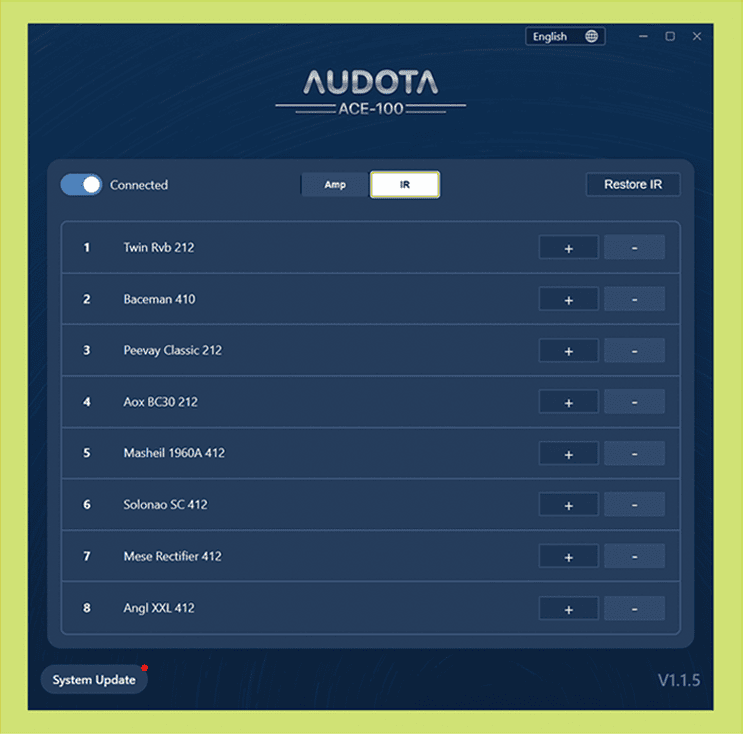

Compatible with official and third-party IR samples, with 16 loadable slots.

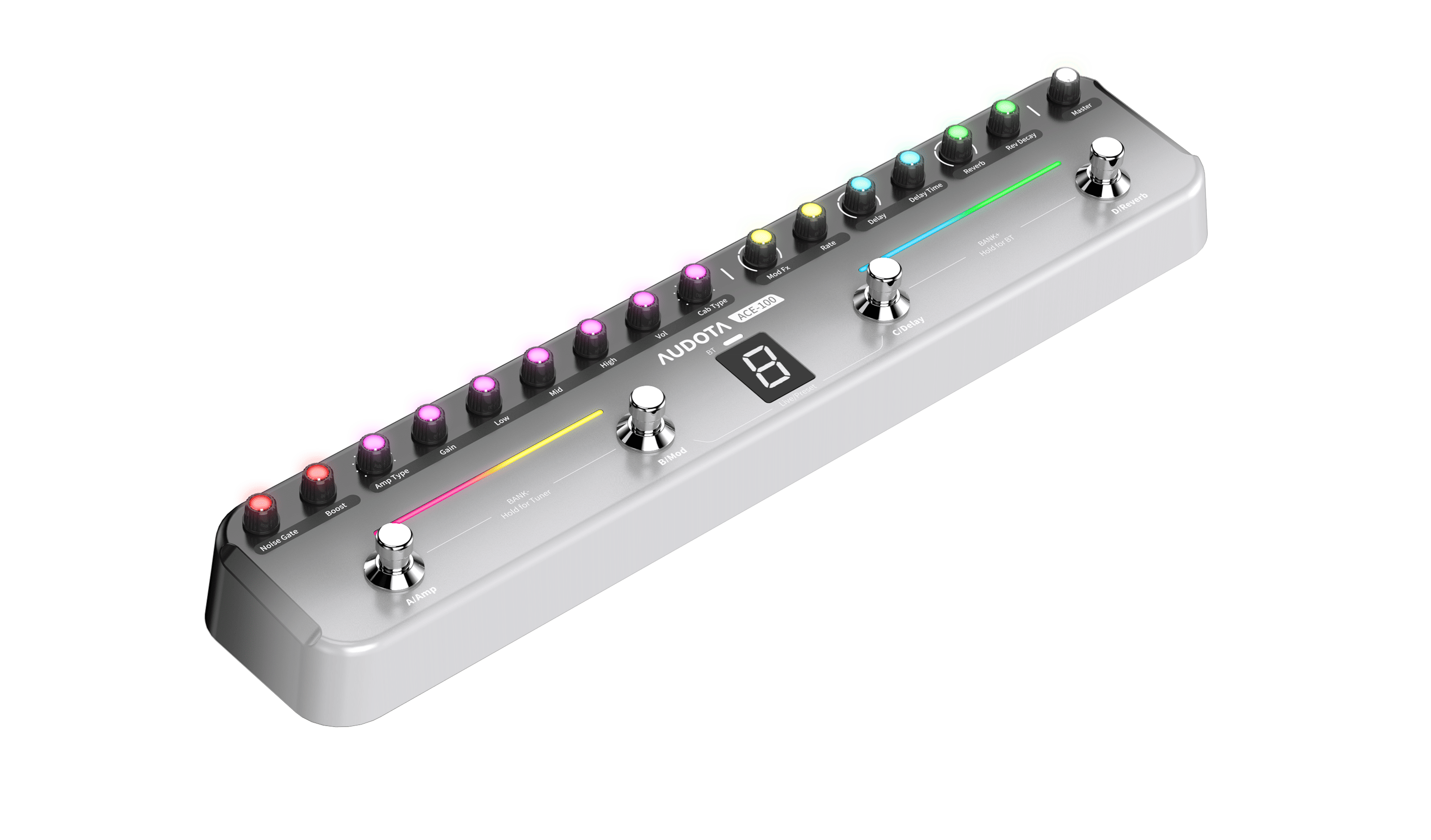

Module Knobs
Turn to toggle modules on/off, select effect types, and adjust parameters.

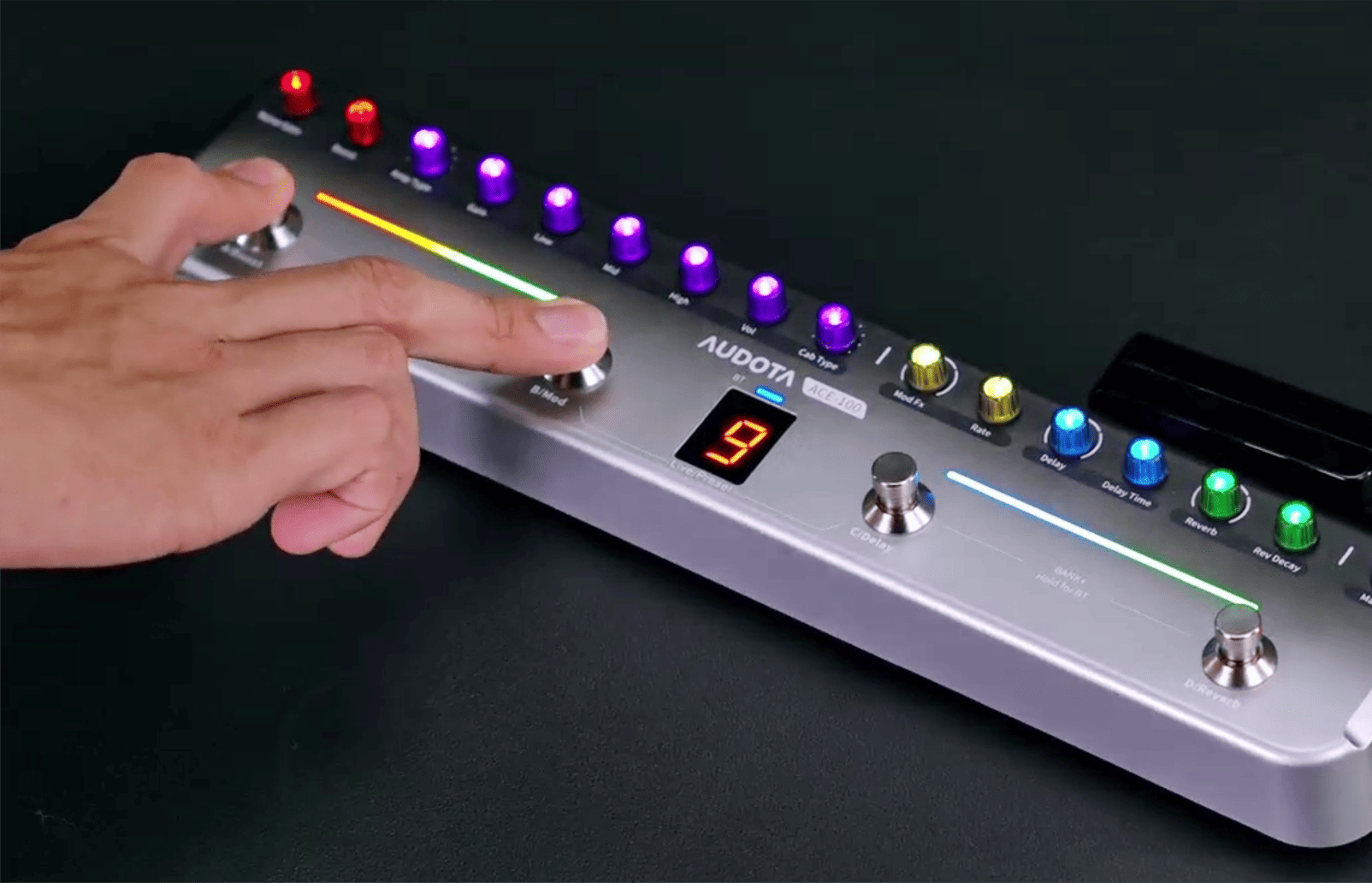

Footswitches (A/B/C/D)
PRESET Mode: Cycle through presets.
LIVE Mode: Toggle effects modules or save presets. Press B+C simultaneously to switch between LIVE/PRESET modes.
Display Screen
LED screen shows preset groups and operational mode.
Bluetooth Status LED
Blinking: Pairing mode (awaiting connection).
Solid: Connected.
Footswitch LED Bars

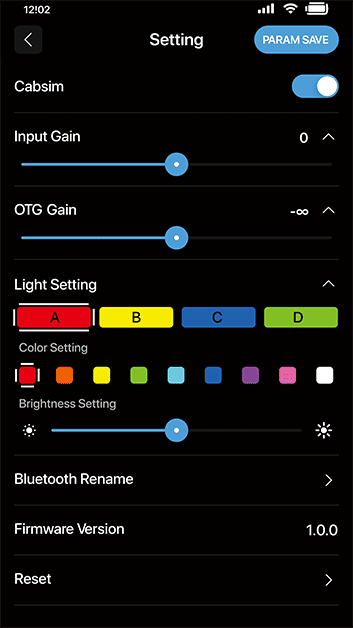

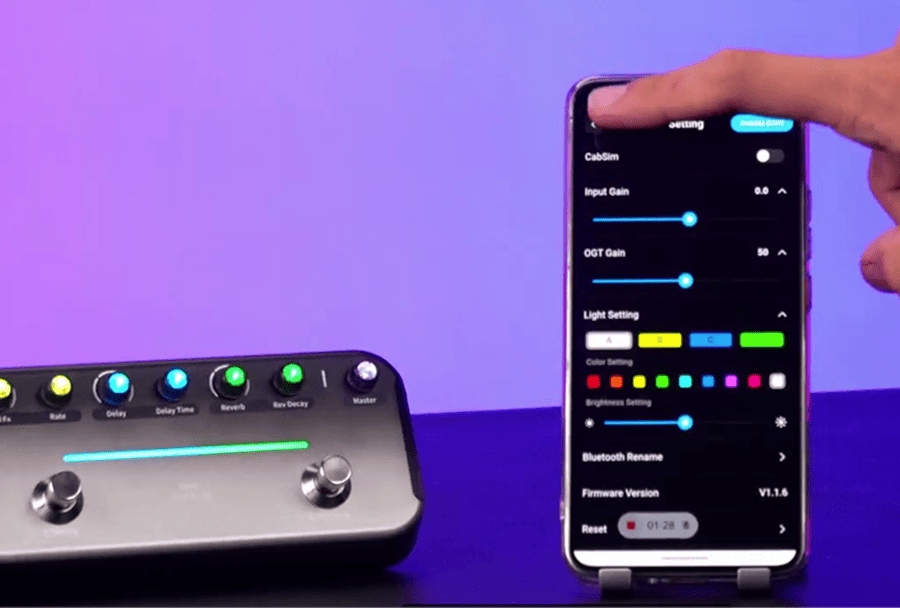

Visual function indicators; customize colors via the app.

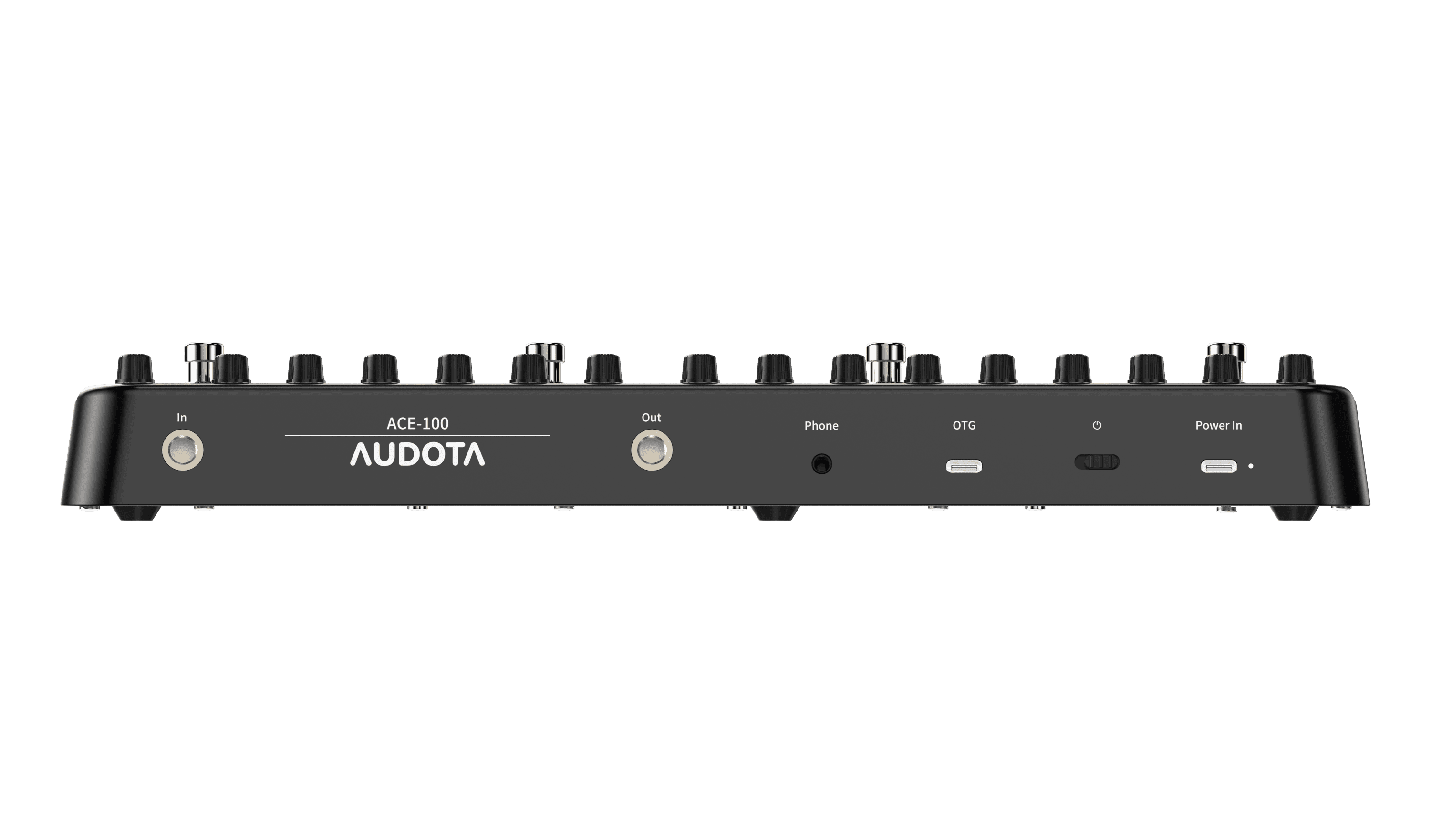

Input
1/4" Mono Jack: Connect your instrument here.
Output

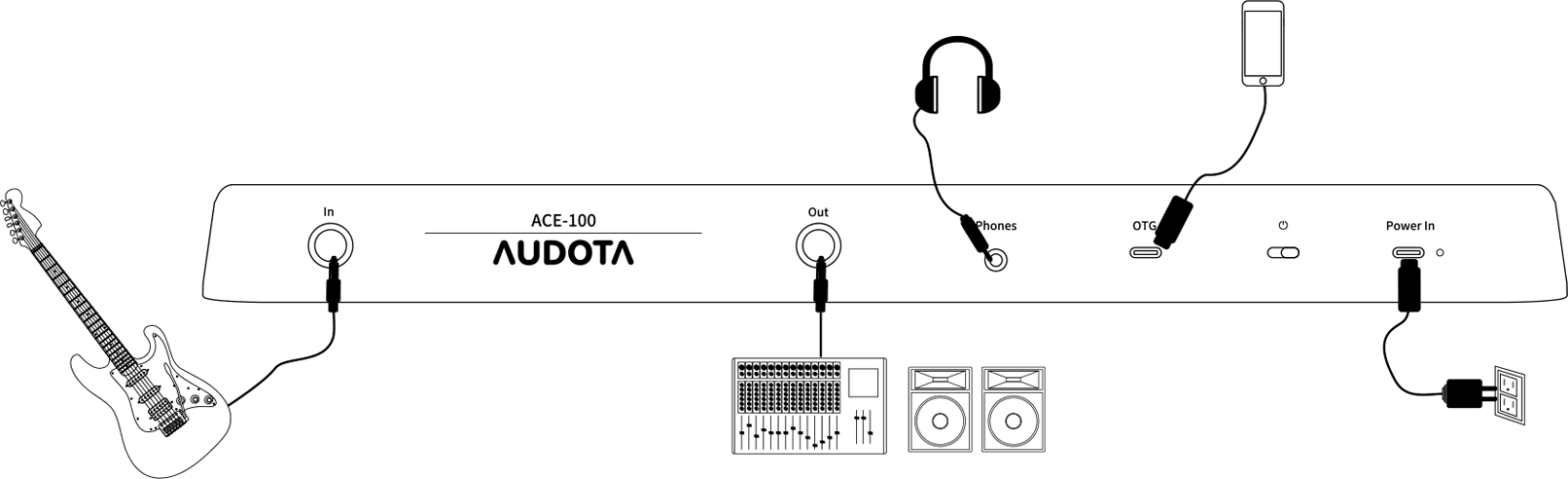

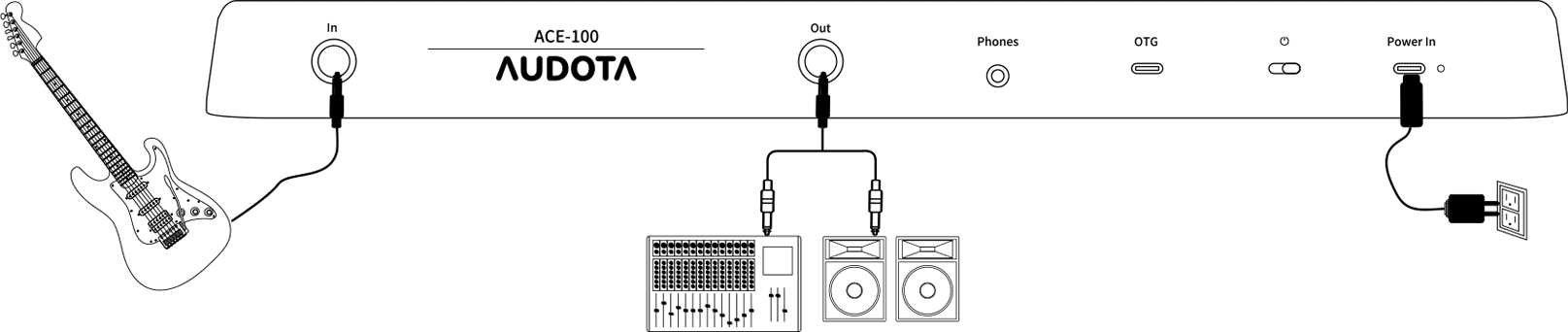

1/4" TRS Stereo Jack: Connect to amps, audio interfaces, or other pedal.
Phones
1/8" Stereo Jack: For silent practice or monitoring.
OTG
Enables direct digital recording via OTG-compatible devices.
Power Switch
Left: ON | Right: OFF

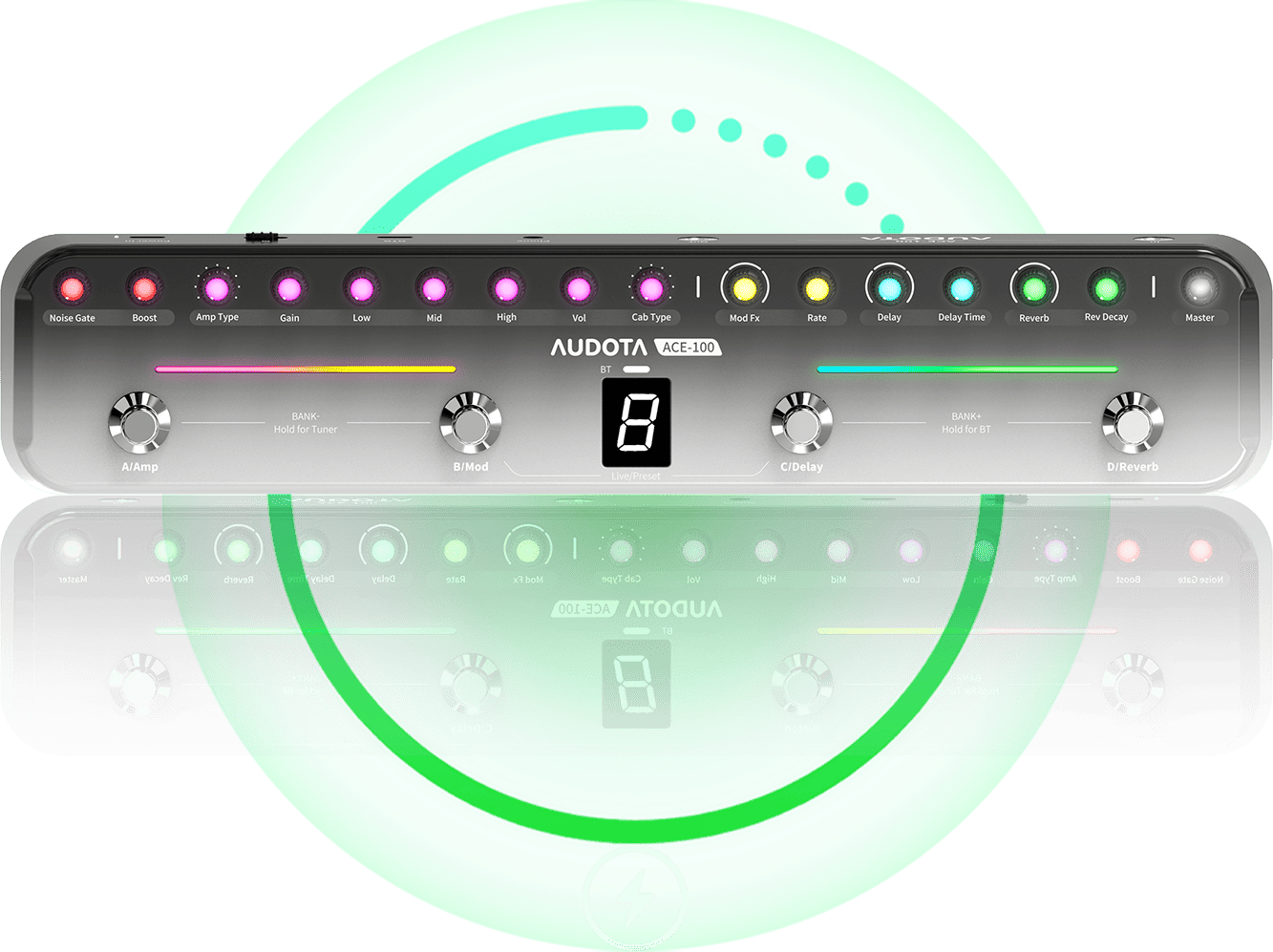

Charging Port & LED Indicator
Use a USB-C cable with a 5V/2A power adapter to charge the unit.
Status LED (right side):
Solid Red: Charging in progress.
Solid Green: Fully charged.
Off: Not connected to power.
| Input： | 6.35mm 2MΩ | |
| Output: | 6.35mm 100Ω | |
| Headphones Output: | 3.5mm 32Ω | |
| USB: | USB-C, for quick charge and OTG recording | |
| Bluetooth: | 5.0 | |
| Battery: | 2000mAh | |
| Battery Life: | 5Hs | |
| Charging Time: | 2.5Hs | |
| Charging Standard： | DC 5V/2A，supports USB-C to USB-A cables only | |
| Impulse Response (lR): | Format： | WAV |
| Sample Rate： | 44.1k(supports importingfull-sample-rate lR files) | |
| Bit Depth： | 24bit | |
| Sample Points： | 512pts | |
| Weight: | 573g | |

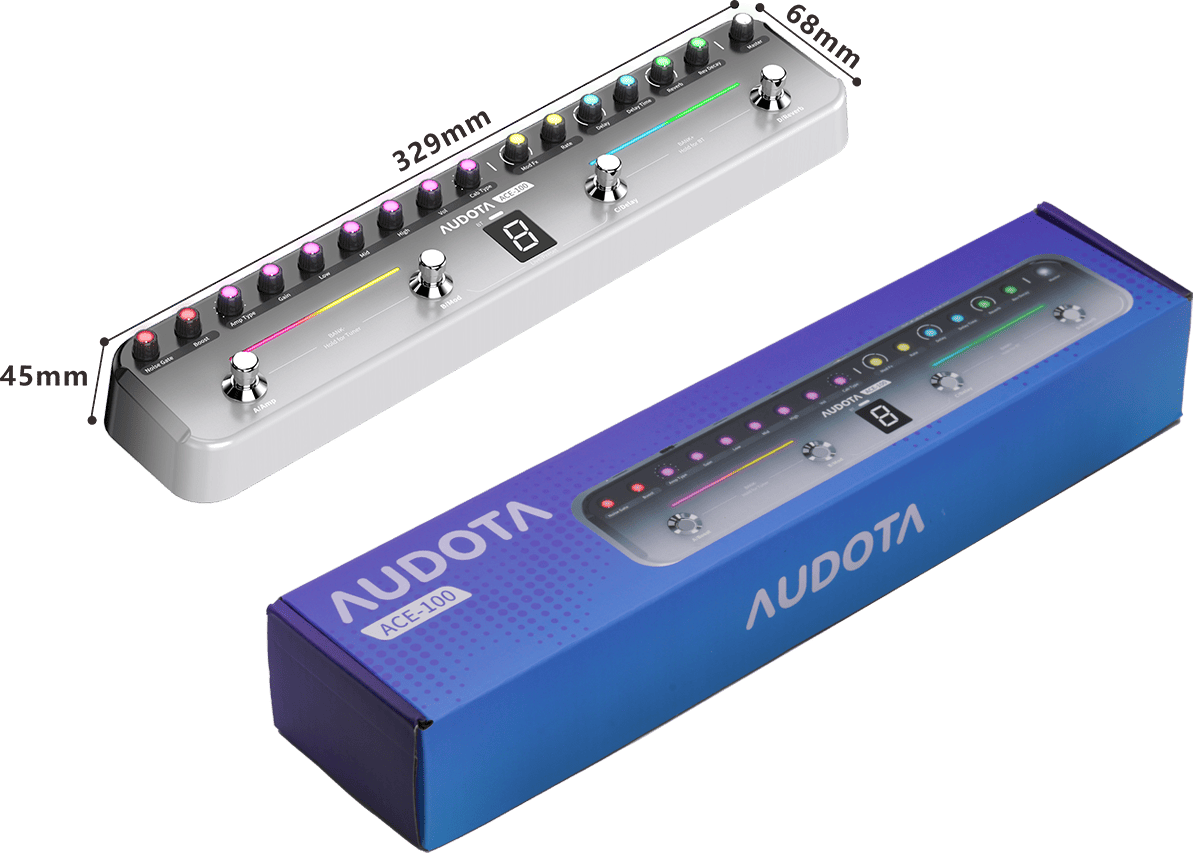

| Dimensions(mm): | L329*W68*H45 | |
| Included Accessorie: | Quick Start Guide, USB Data Cable | |
Features
Specifications
Downloads
● Equipped with Noise Gate, Boost, 8 Amp Models, 8 Cab IR Models,3 Modulation Effects,3 Delay Effects, and 3 Reverb Effects.
●Supports customizable color and footswitch indicator lighting via app.
●Compatible with official and third-party IR samples, with 16 loadable slots.
●Supports Live/Presetoperation modes.
●Includes 40 preset slots for saving configurations.
●Built-in tuner function.
●Supports stereo output for effects.
●Headphones output.
● Bluetooth audio playback.
●Enables OTG (On-The-Go) recording.
●Powered by a built-in lithium battery.

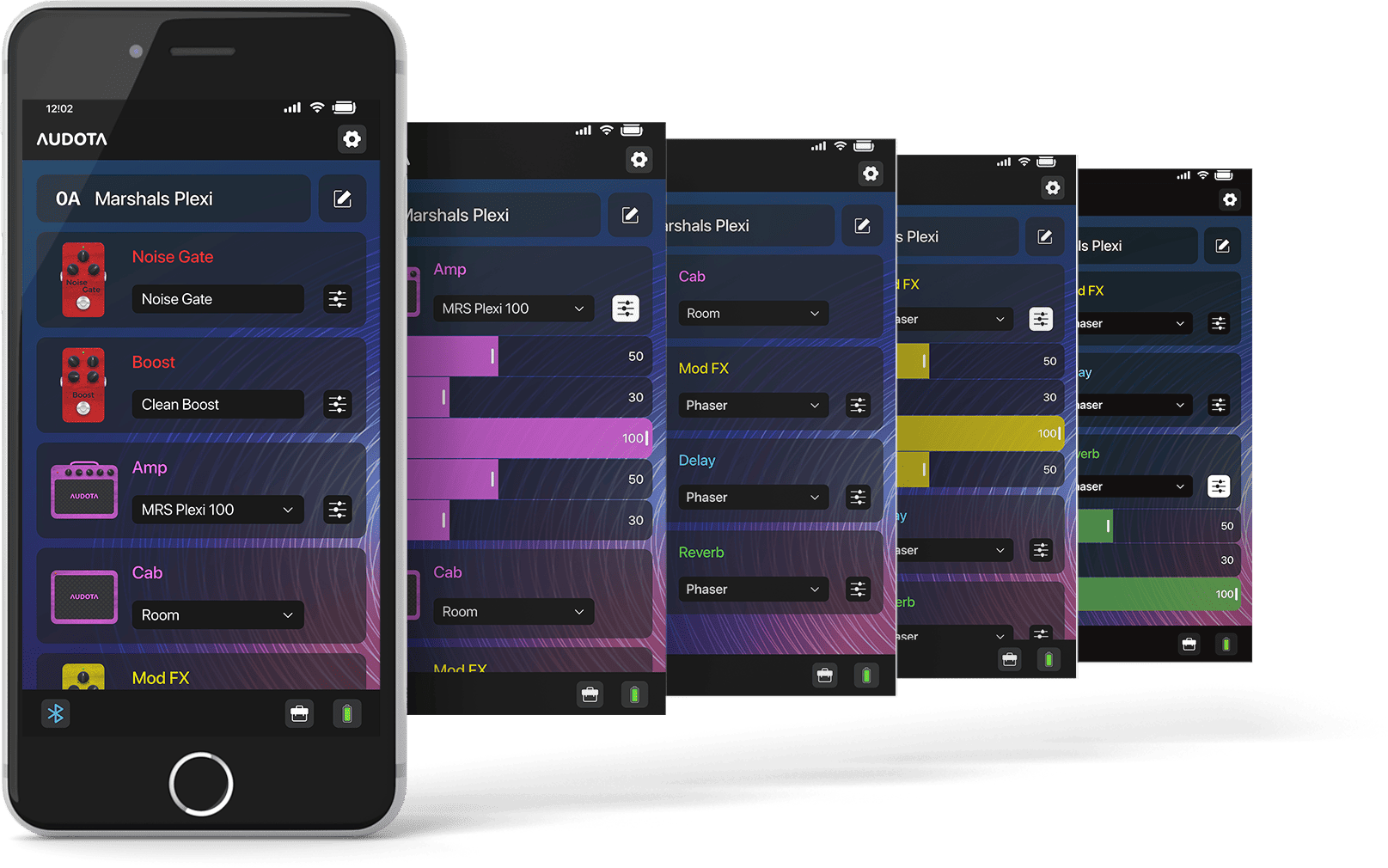

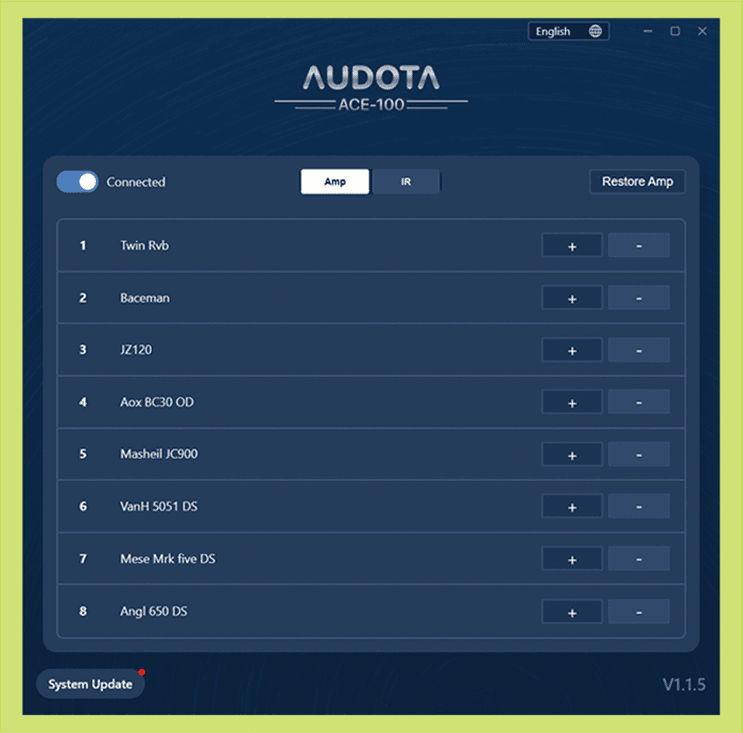

●Compatible with Audota Studio APP(mobile) and desktop software.
| Input： | 6.35mm 2MΩ | |
| Output: | 6.35mm 100Ω | |
| Headphones Output: | 3.5mm 32Ω | |
| USB: | USB-C, for quick charge and OTG recording | |
| Bluetooth: | 5.0 | |
| Battery: | 2000mAh | |
| Battery Life: | 5Hs | |
| Charging Time: | 2.5Hs | |
| Charging Standard： | DC 5V/2A，supports USB-C to USB-A cables only | |
| Impulse Response (lR): | Format： | WAV |
| Sample Rate： | 44.1k(supports importing full-sample-rate lR files) | |
| Bit Depth： | 24bit | |
| Sample Points： | 512pts | |
| Weight: | 573g | |
| Dimensions(mm): | L329*W68*H45 | |
| Included Accessorie: | Quick Start Guide, USB Data Cable | |
