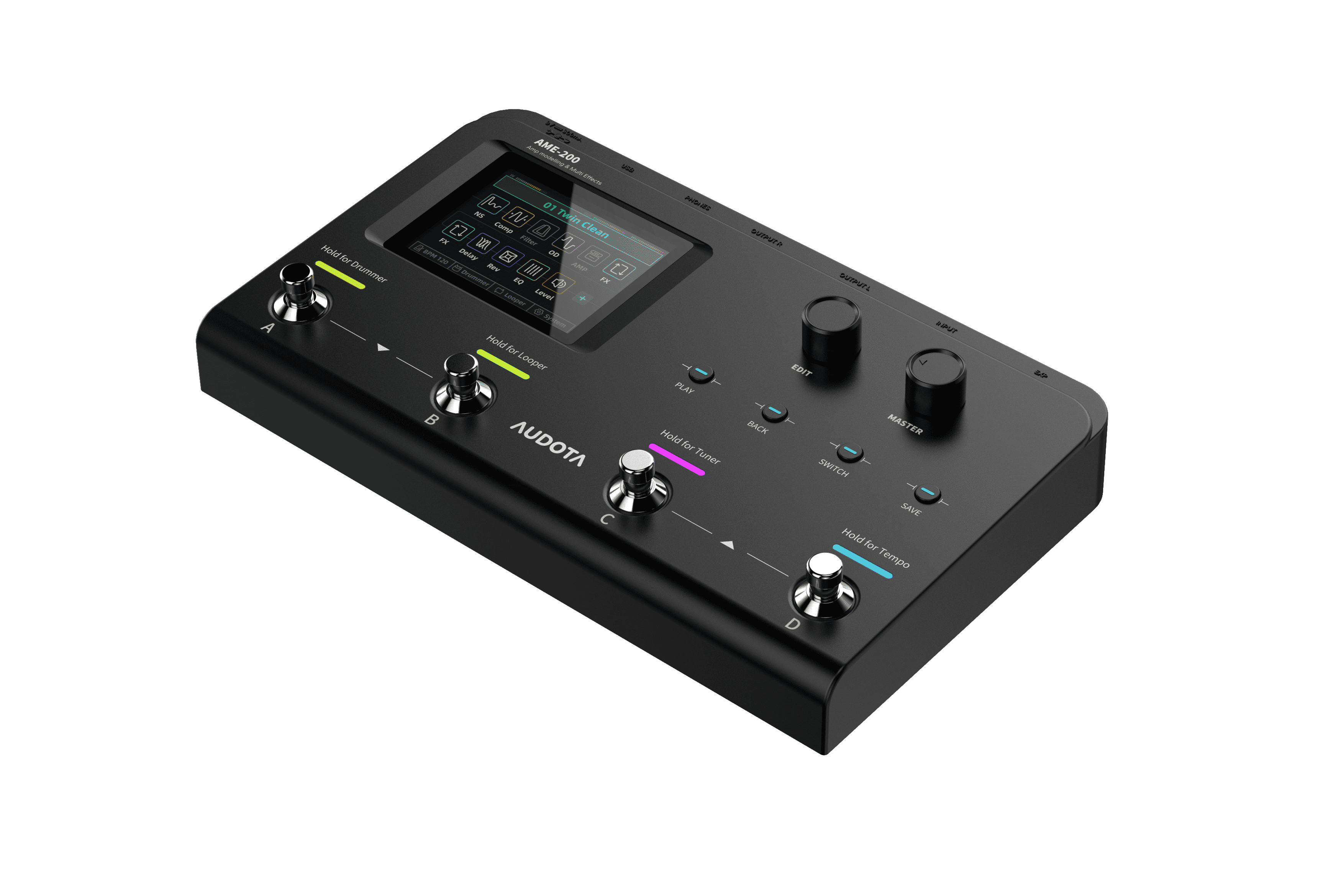

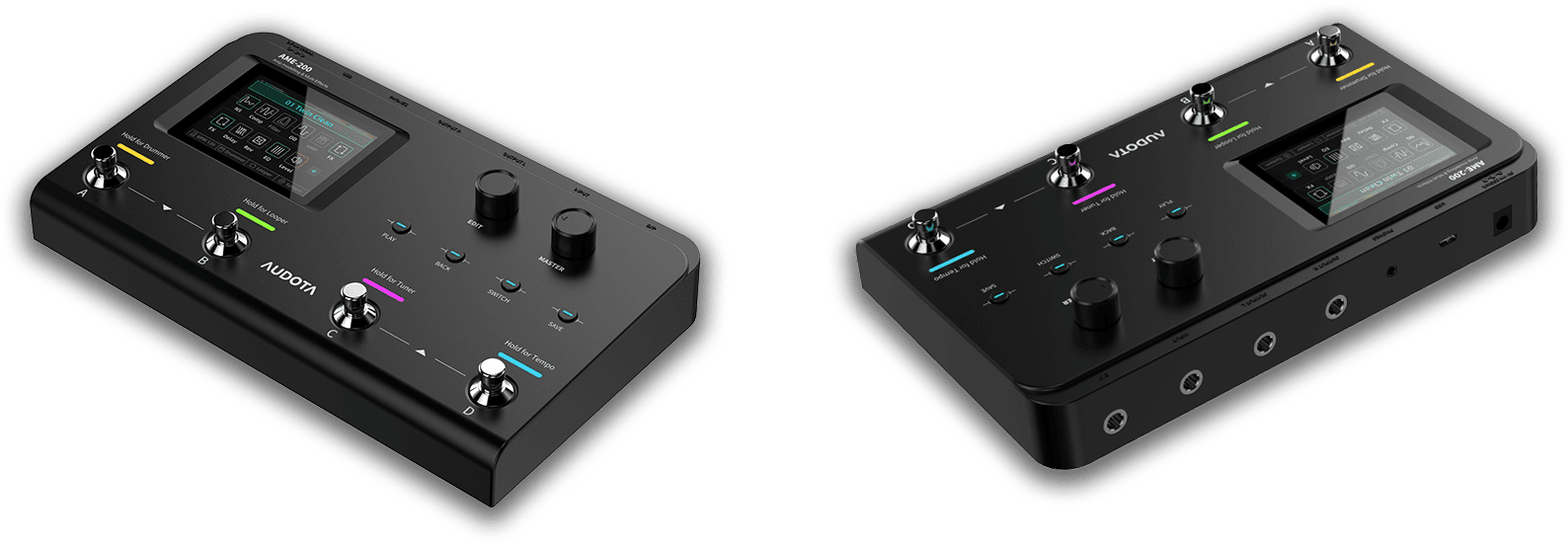

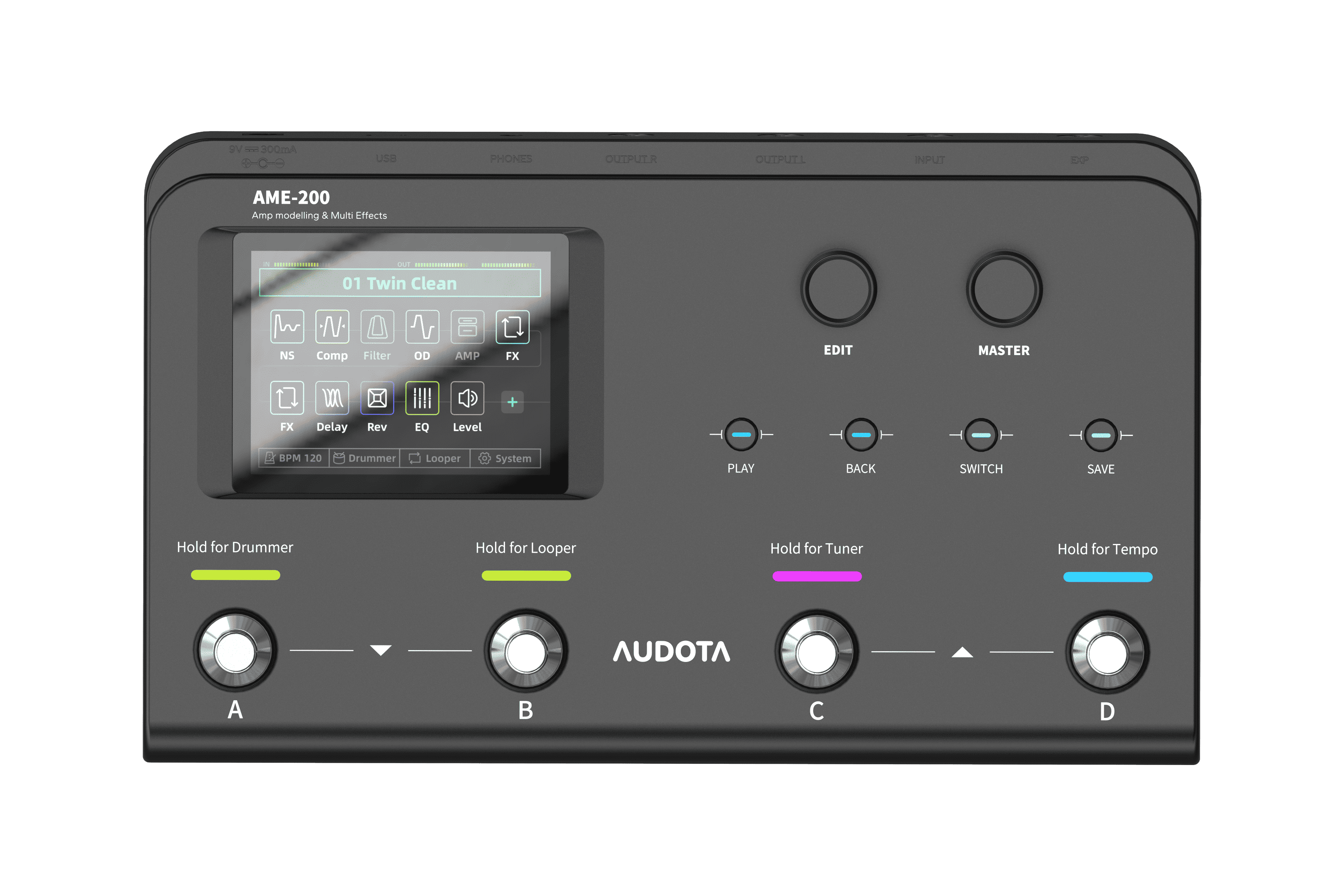

Amp modeler & Multi-Effects

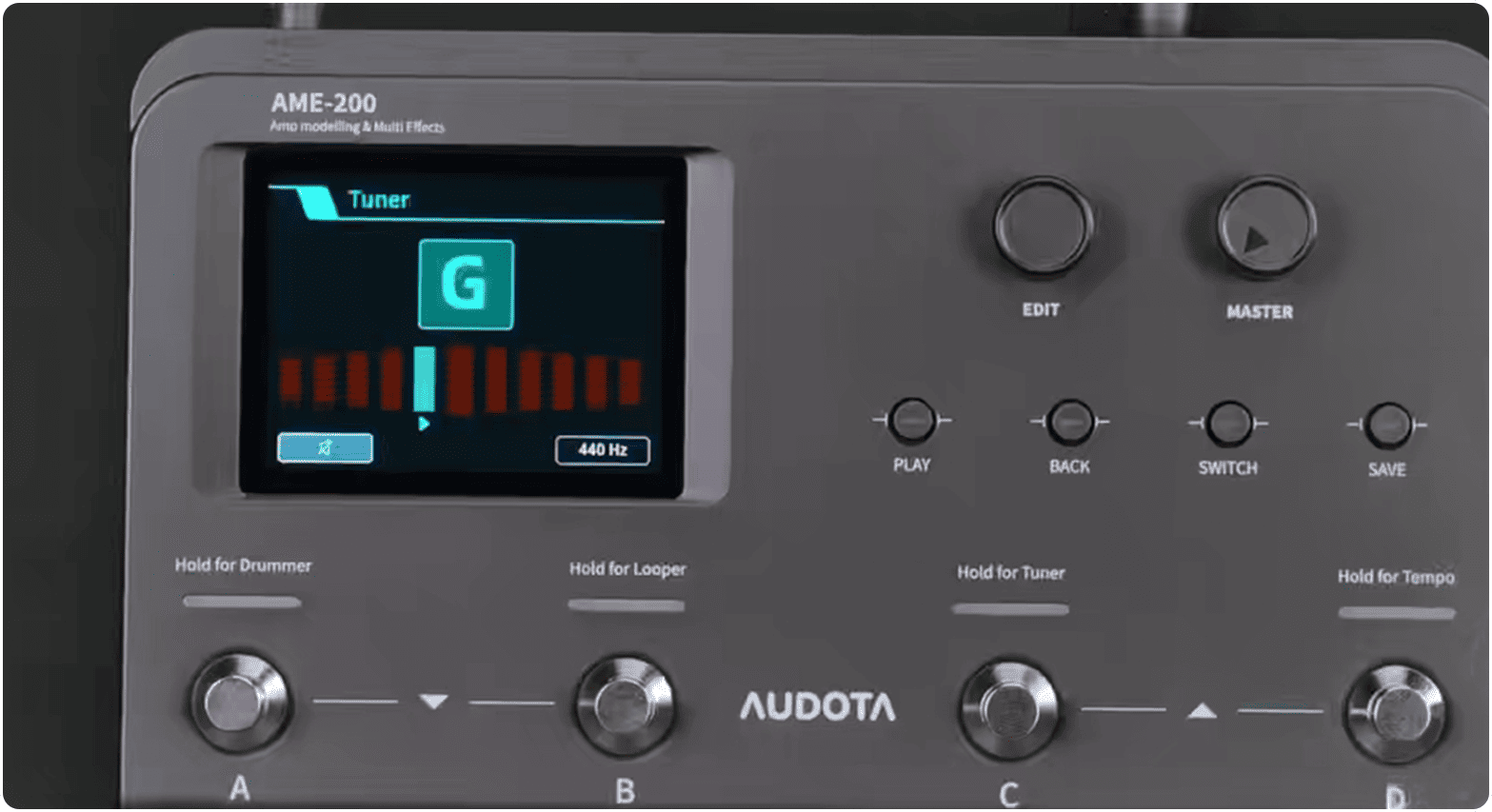

Built-in tuner, 50 drum machines,60-second recording loop.
It comes with an expression pedal and supports global BPM Settings.

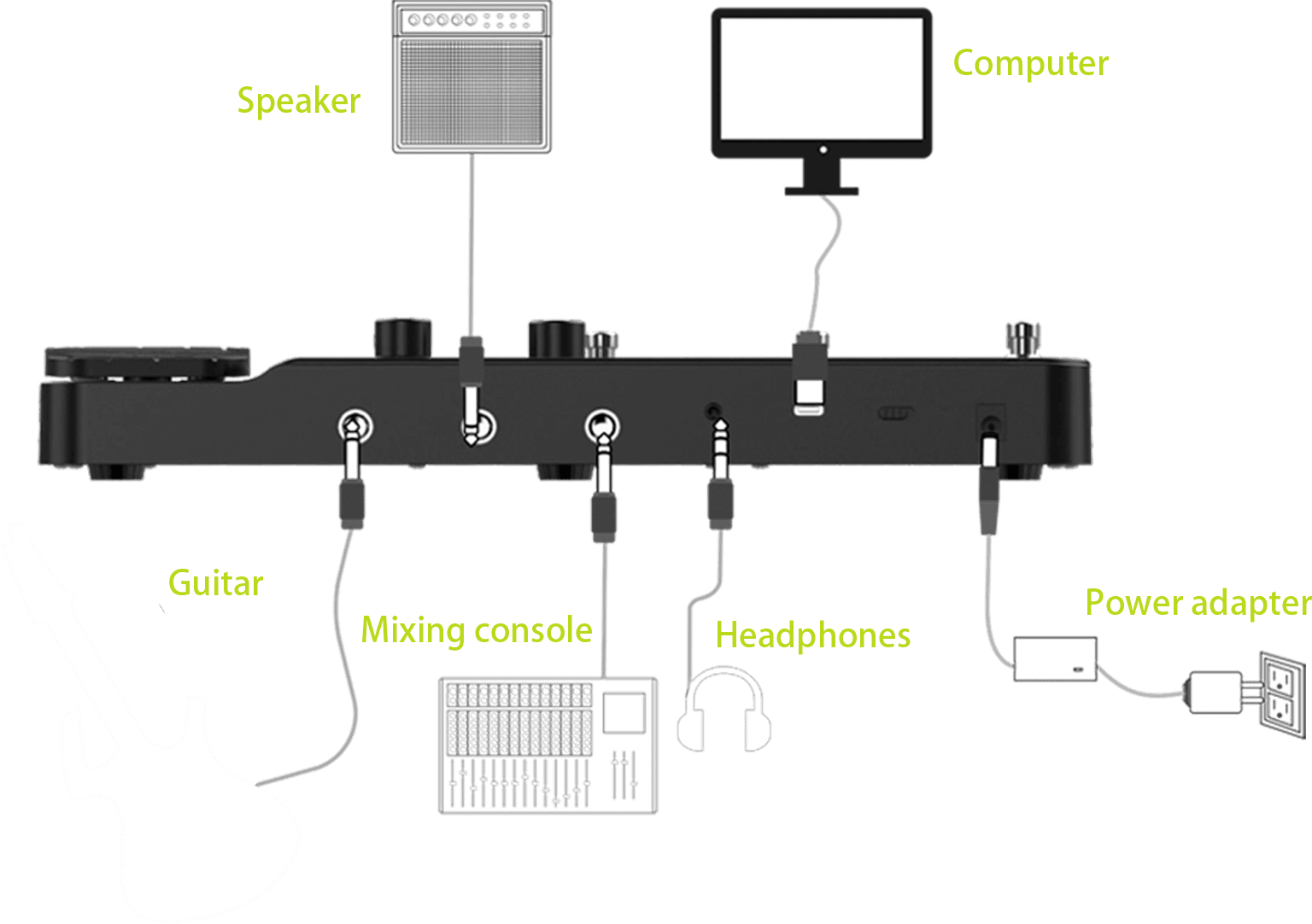

Please use a TRS (Tip-Ring-Sleeve) stereo cable with two 1/4" connectors to connect the external footswitch to the AME-200.

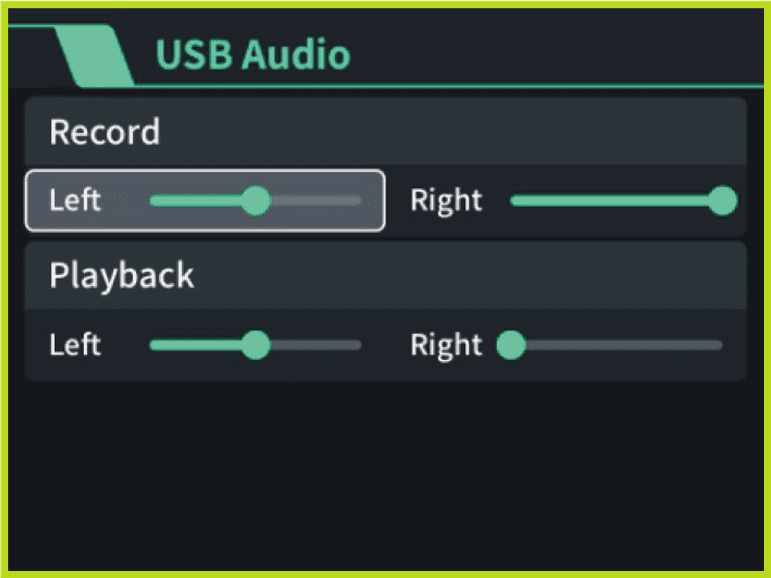

The USB interface of the AME-200 supports connecting to smart devices for OTG recording and playback

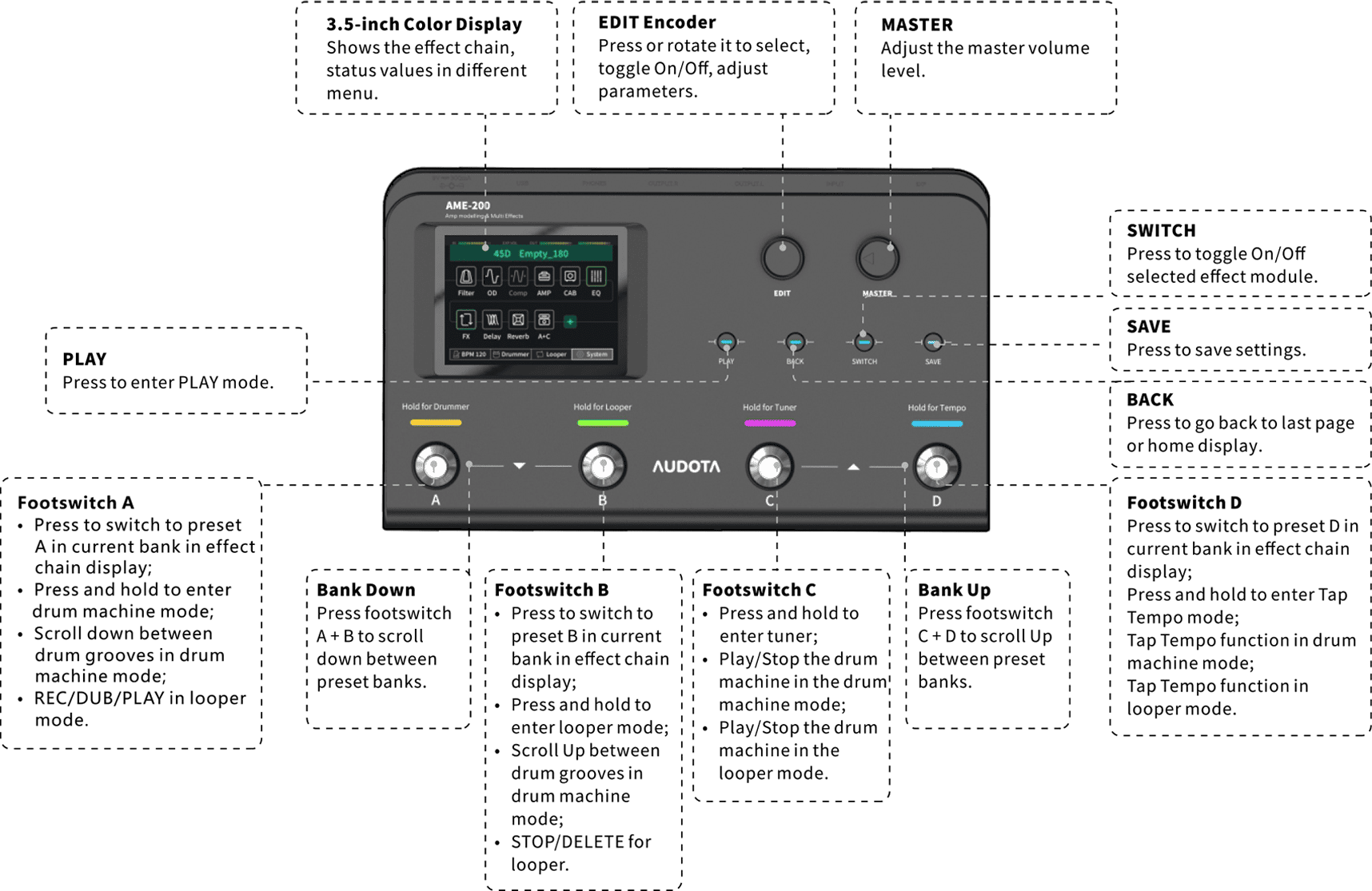

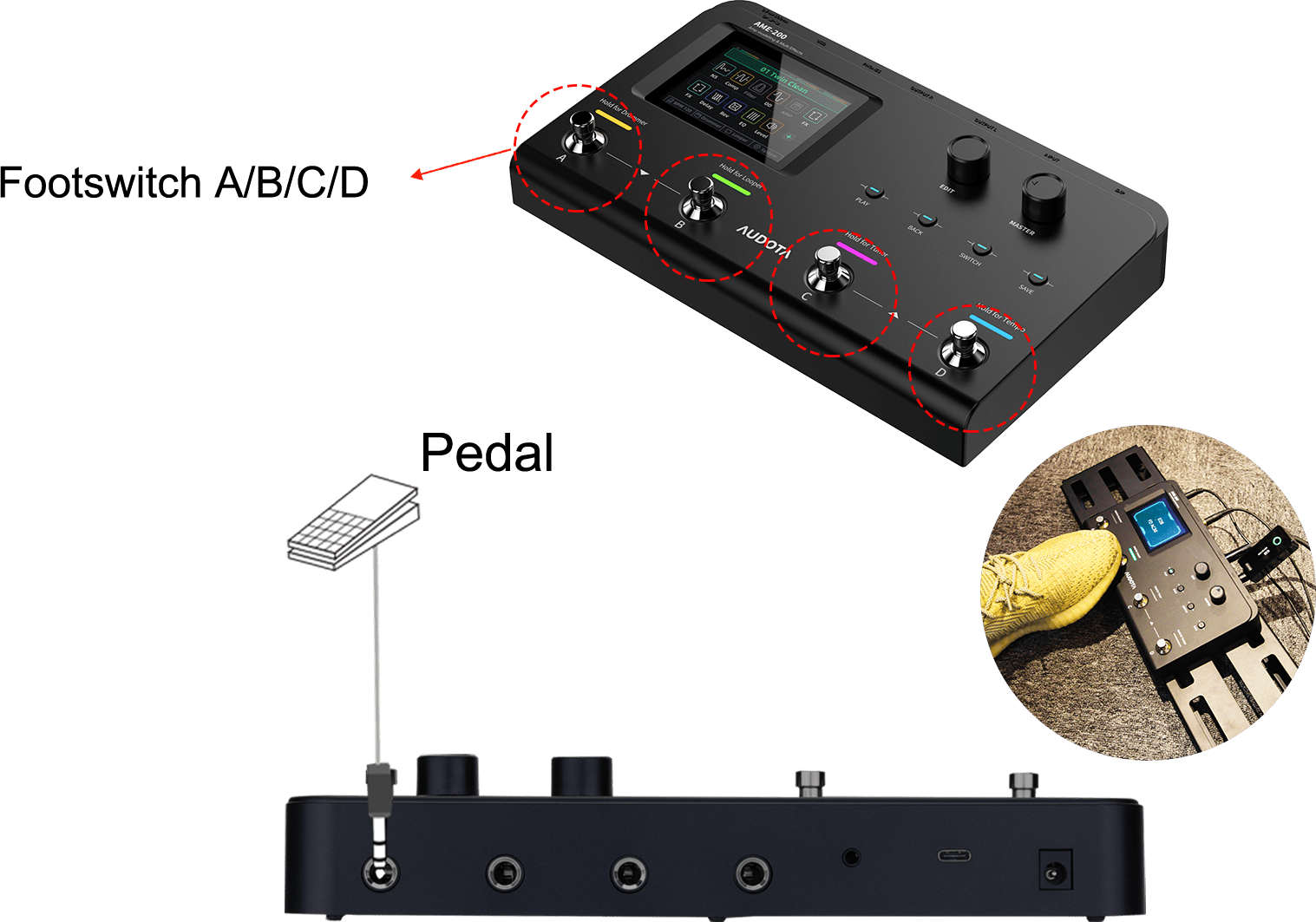

Footswitch A/B/C/D —
Efficient cross-group switching, free tone combination.
External expression pedal —
It can realize the functions of volume pedal and footswitch calibration.
Support official amp file and third-party lR file loading, up to 30 storage slots.

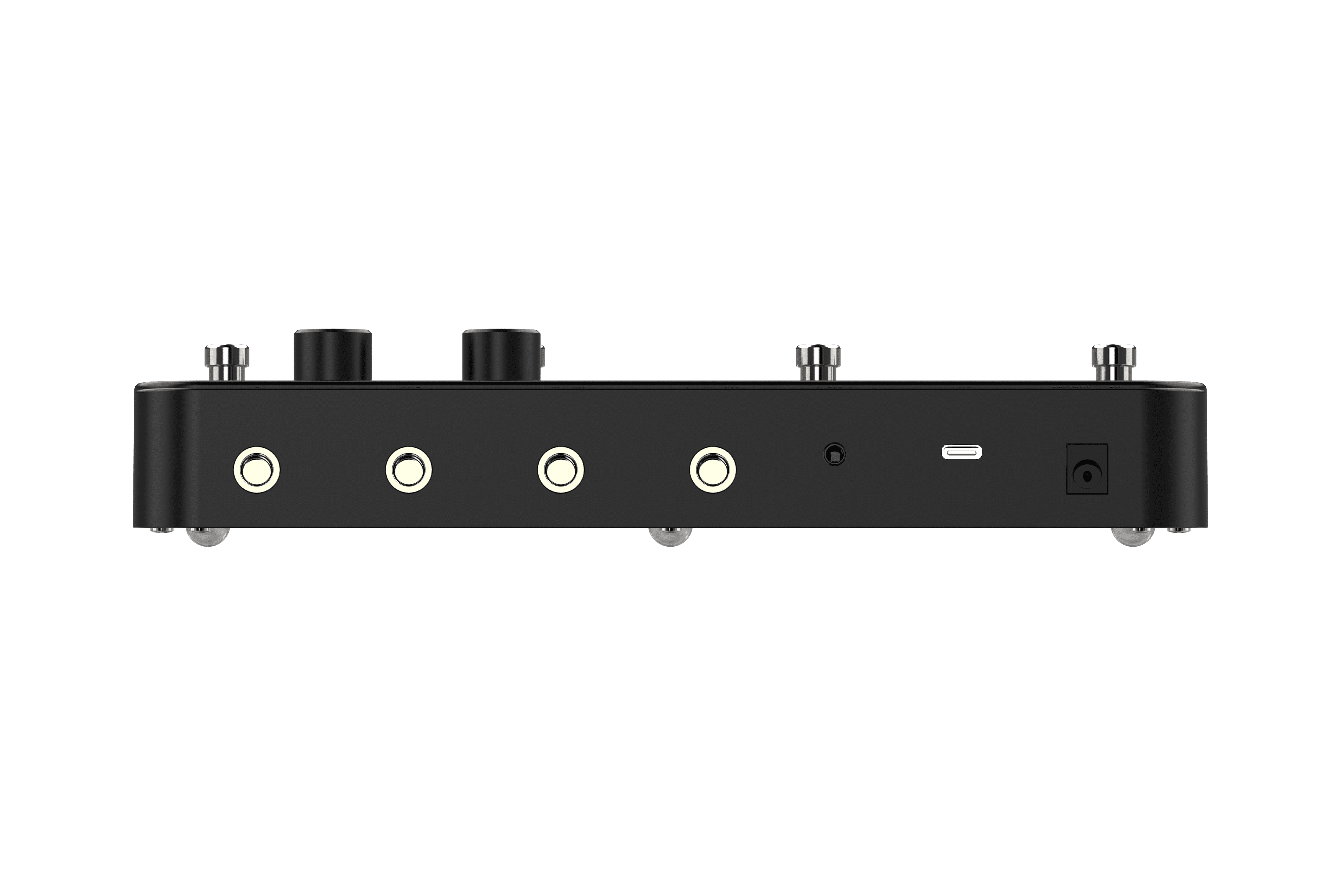

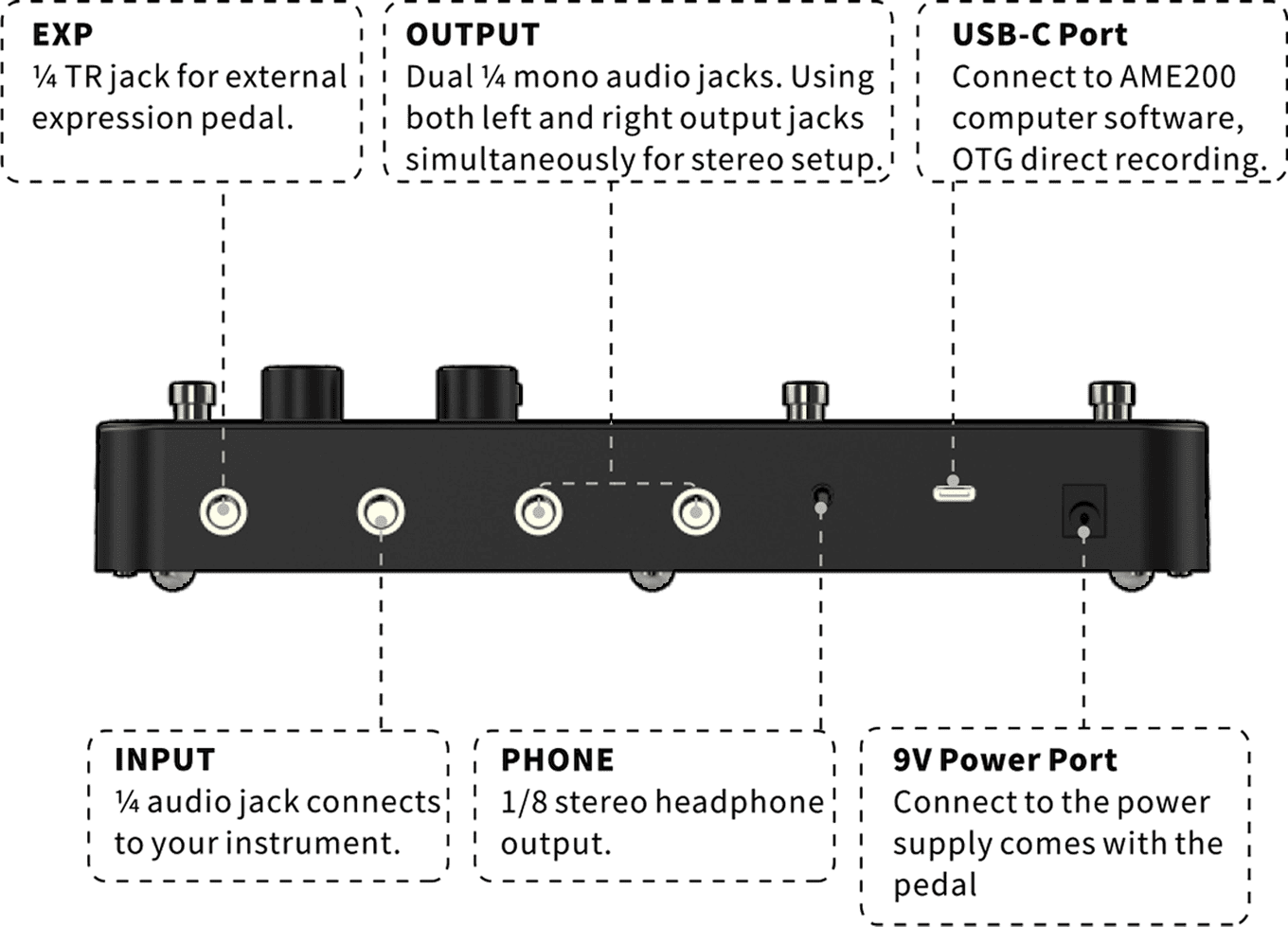

| Input： | 6.35mm 2.2MΩ | |
| Output: | 6.35mm 510Ω | |
| Headphones Output: | 3.5mm 32Ω | |
| USB: | USB-C, used for connection to PC or OTG recording | |
| Power input: | DC 9V/300mA, center negative, outer positive | |
| Impulse Response (lR): | Format： | WAV |
| Sample Rate： | 44.1k (supports full sample rate lR file import) | |
| Sample Depth： | 24bit | |
| Sample Points： | 512pts | |
| Weight: | 725g | |

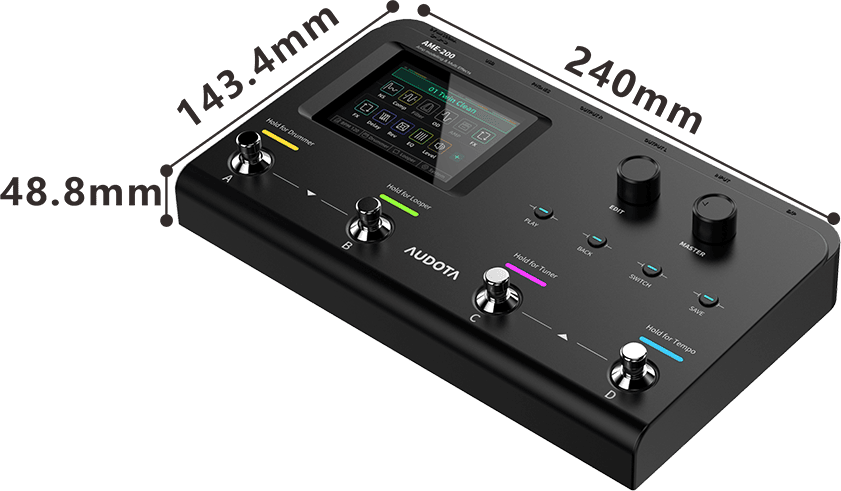

| Dimensions(mm): | L240*W143.4*H48.8 | |
| Operating temperature: | 0°C~60°C | |
Features
Specifications
Downloads

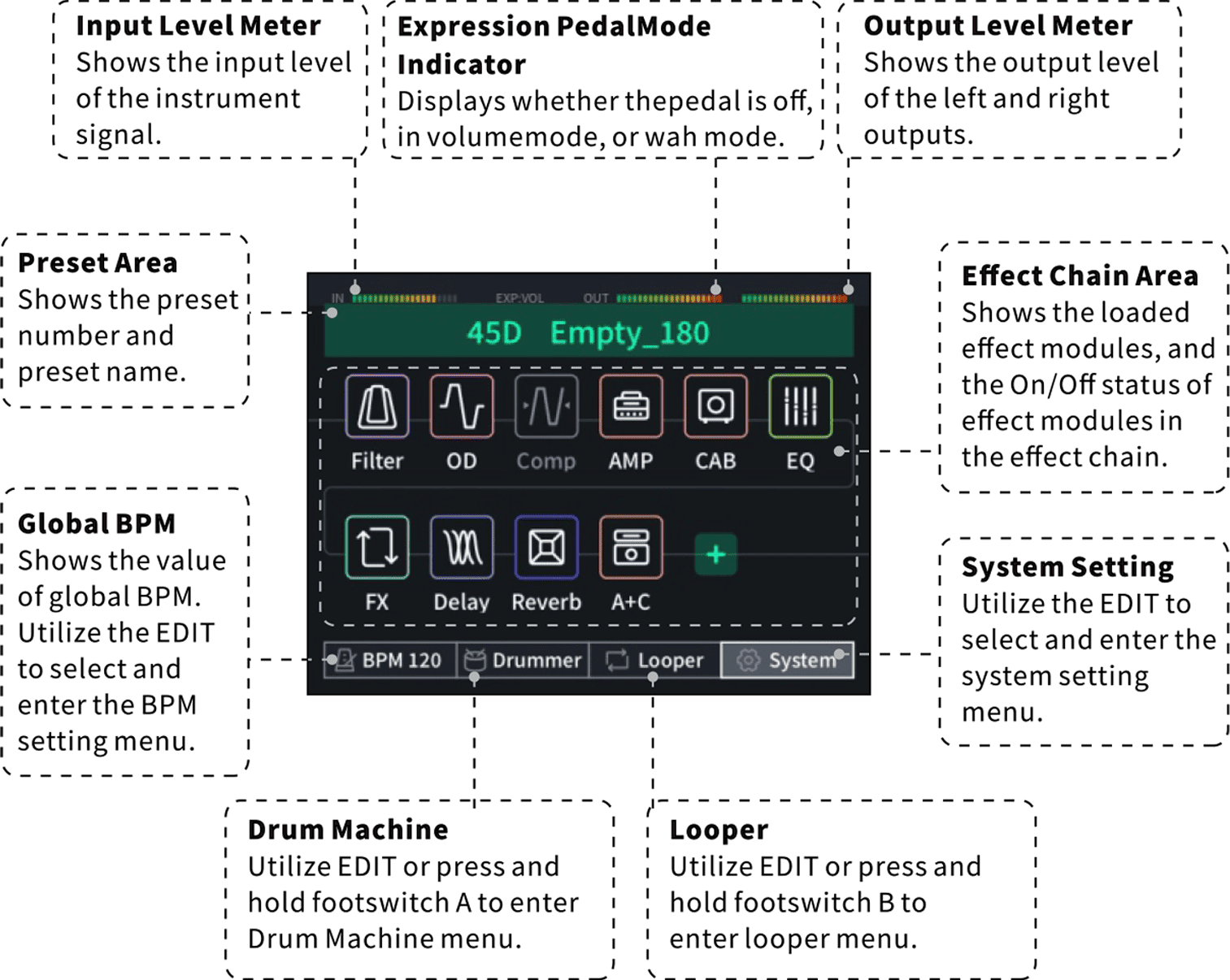

●Built-in 10 effect modules, 221 outstanding effect models
●Built-in 200 storable preset locations
●Supports customizable editing of effect chain module order
●Supports third-party IR loading, with 20 storable locations

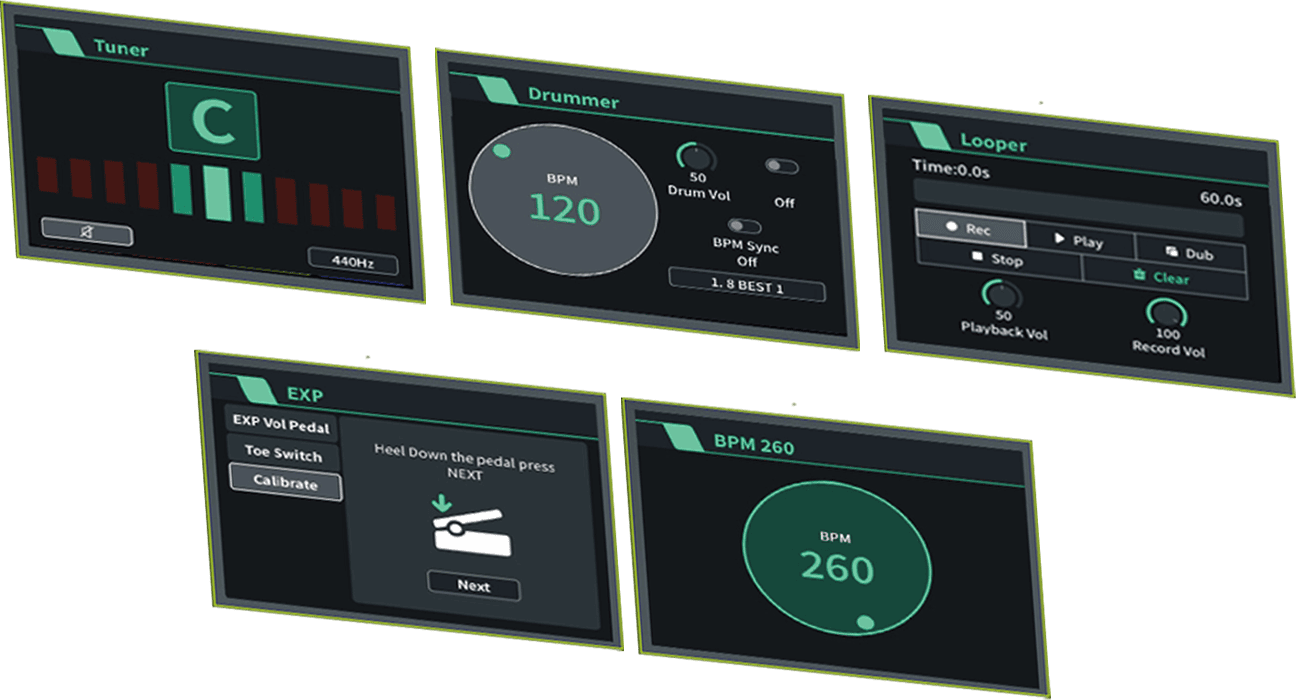

● Built-in tuner, 50 drum machine sets, 60-second recording loop
●Supports global BPM settings
●Supports dual-channel stereo output
●Supports stereo headphone output
●Supports external expression pedal
●USB supports OTG recording

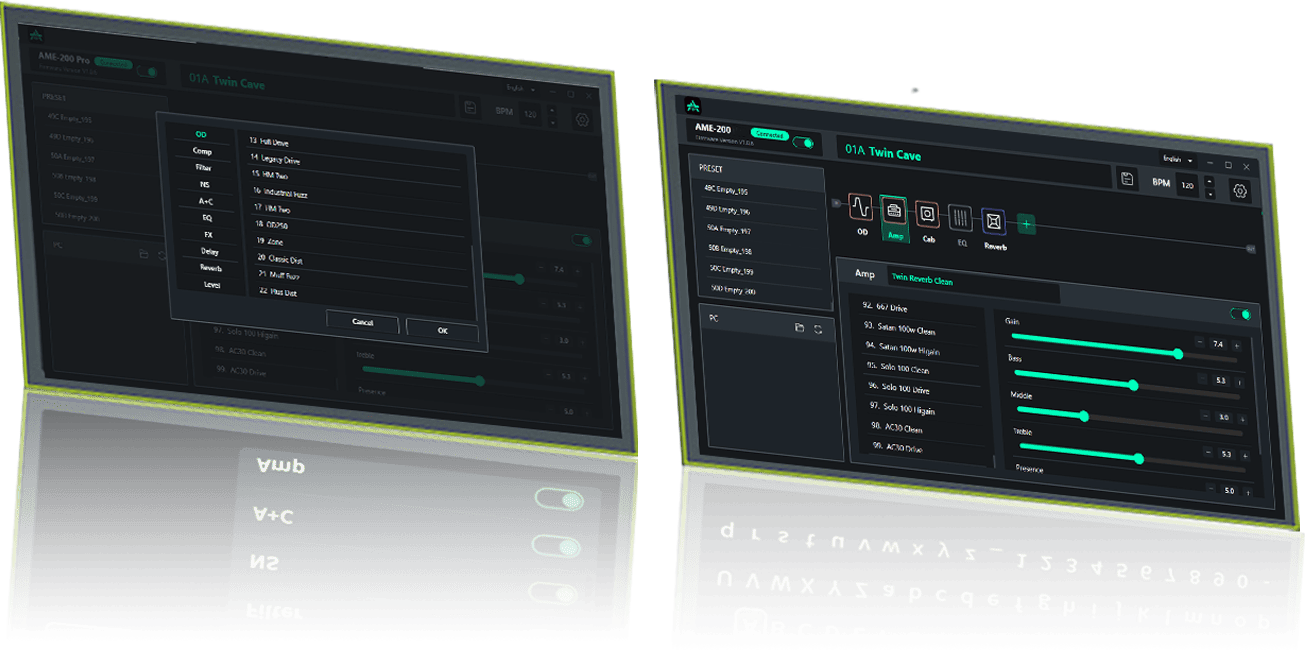

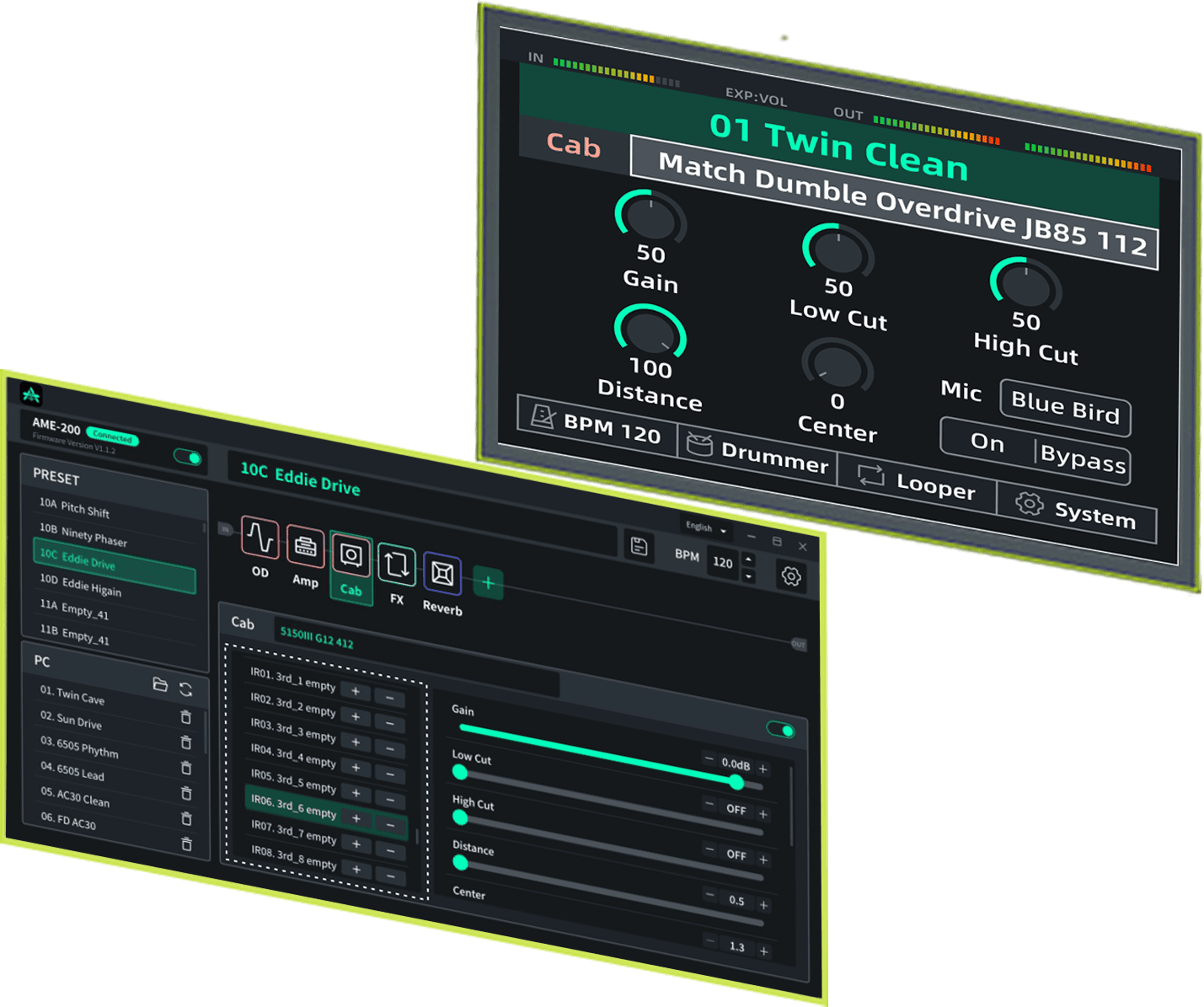

●Supports USB connection to PC for use with dedicated management software
| Input： | 6.35mm 2.2MΩ | |
| Output: | 6.35mm 510Ω | |
| Headphones Output: | 3.5mm 32Ω | |
| USB: | USB-C, used for connection to PC or OTG recording | |
| Power input: | DC 9V/300mA, center negative, outer positive | |
| Impulse Response (lR): | Format： | WAV |
| Sample Rate： | 44.1k (supports full sample rate lR file import) | |
| Sample Depth： | 24bit | |
| Sample Points： | 512pts | |
| Weight: | 725g | |
| Dimensions(mm): | L240*W143.4*H48.8 | |
| Operating temperature: | 0°C~60°C | |
