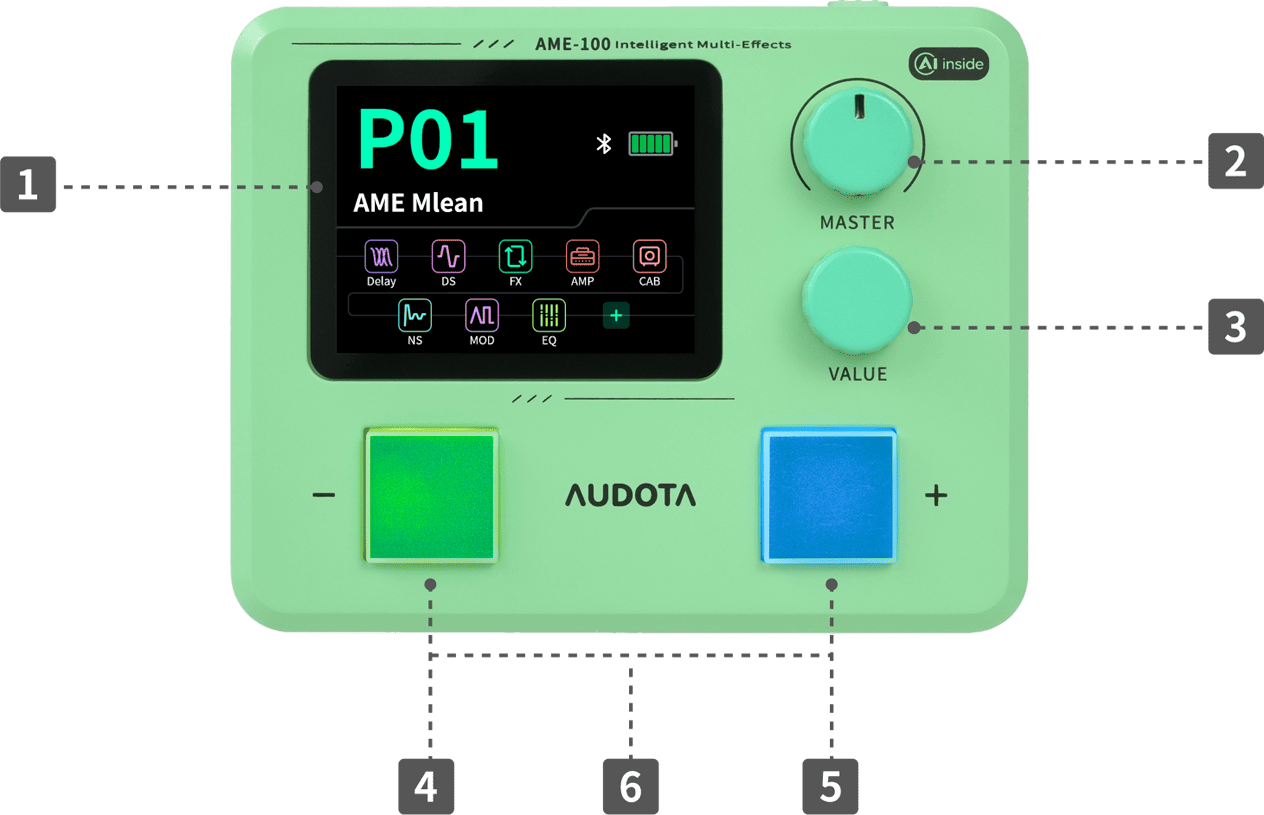

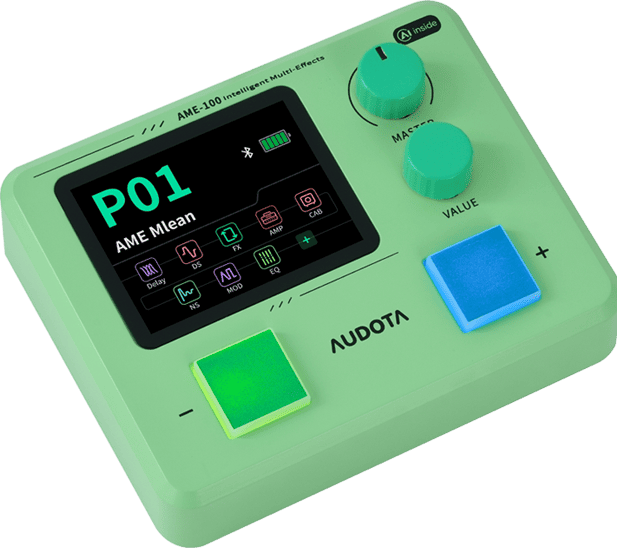

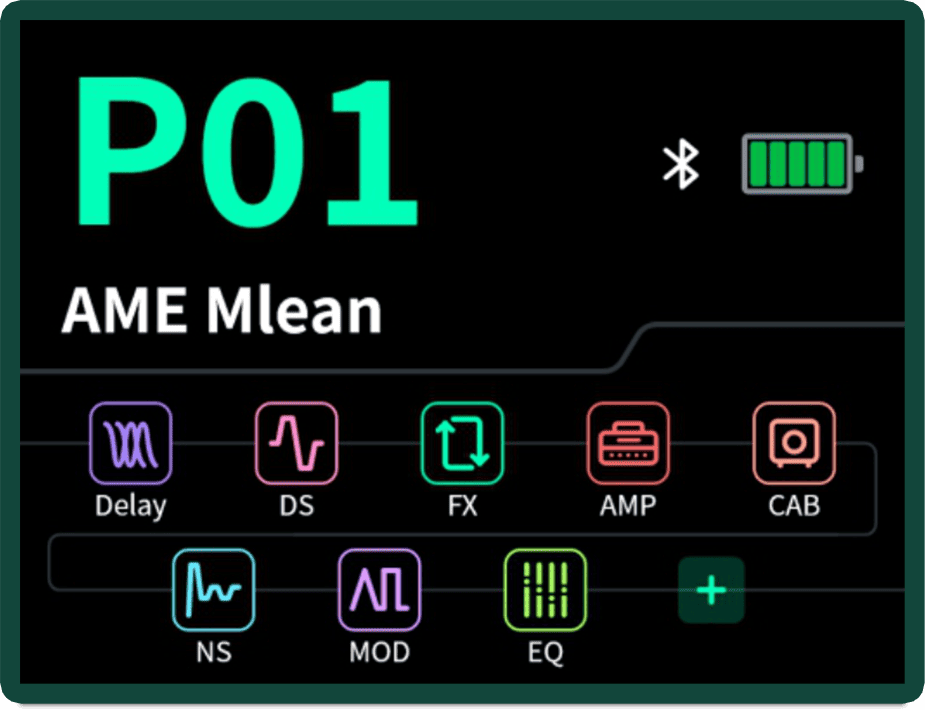

2.4-inch Color Display

Displays effect chains and various function information.

MASTER Knob

Controls the overall output volume level.

EDIT Encoder

Press or rotate to switch presets, select functions, toggle features, and edit parameters.

Footswitch "-"

Press in the Effect Chain interface to switch presets to the left;
Long-press in any non-Looper & Drum Machine interface to enter the Tuner interface;

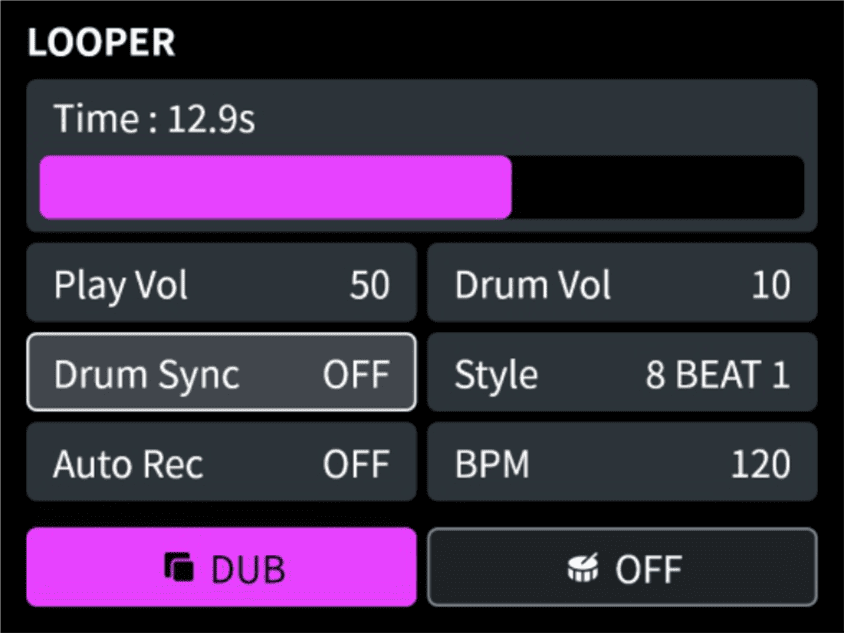

In the Looper & Drum Machine interface, this switch performs recording / playback / overdub / stop recording / clear recording.

Footswitch "+"

Press in the Effect Chain interface to switch presets to the right;
Long-press in any interface to enter the Looper & Drum Machine interface;
In the Looper & Drum Machine interface, this switch performs pause/play and enable the drum machine.

Footswitch "-" & Footswitch "+"

Press both simultaneously to go back.
Press and hold both simultaneously to return to the Main Interface.

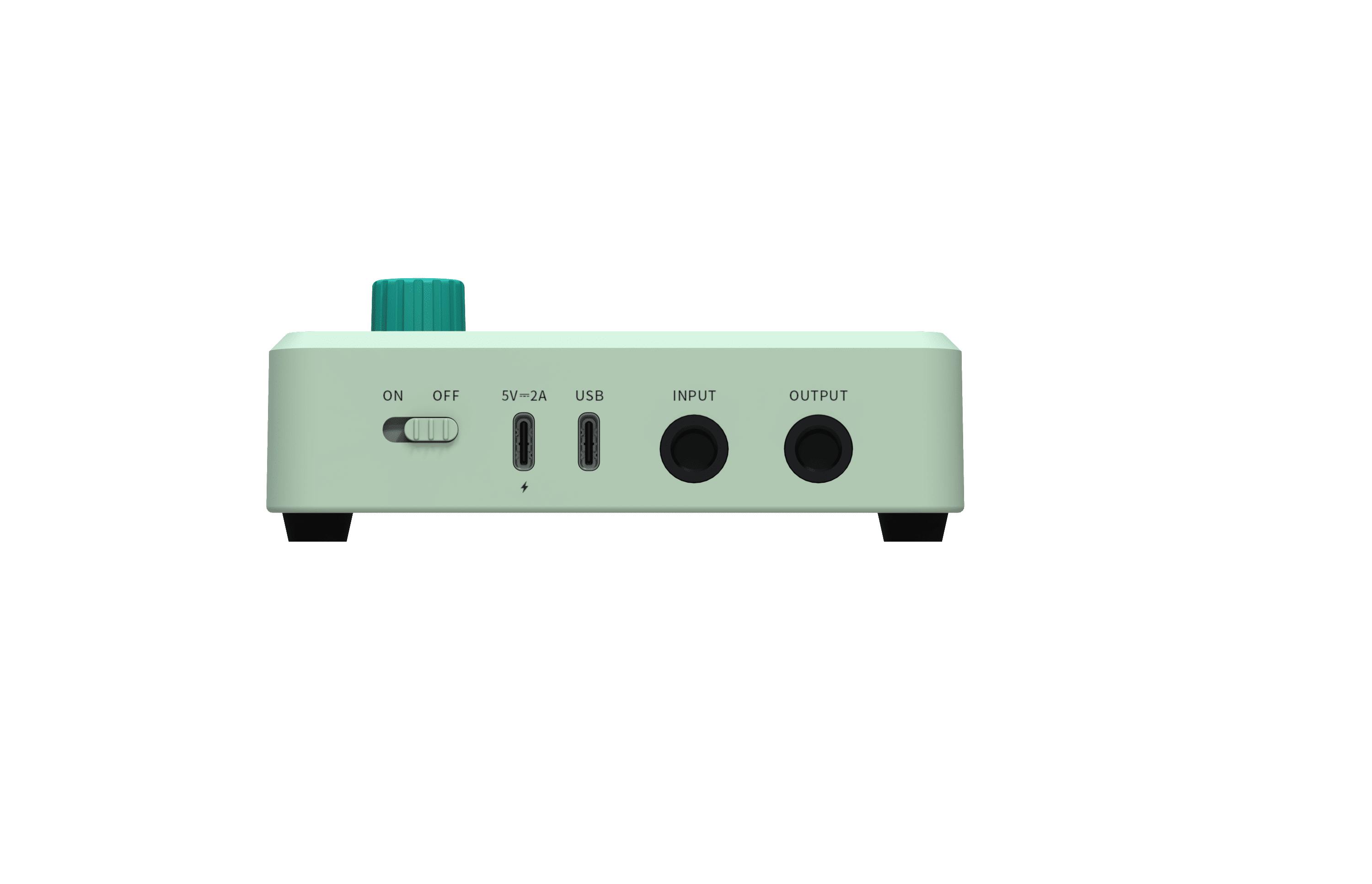

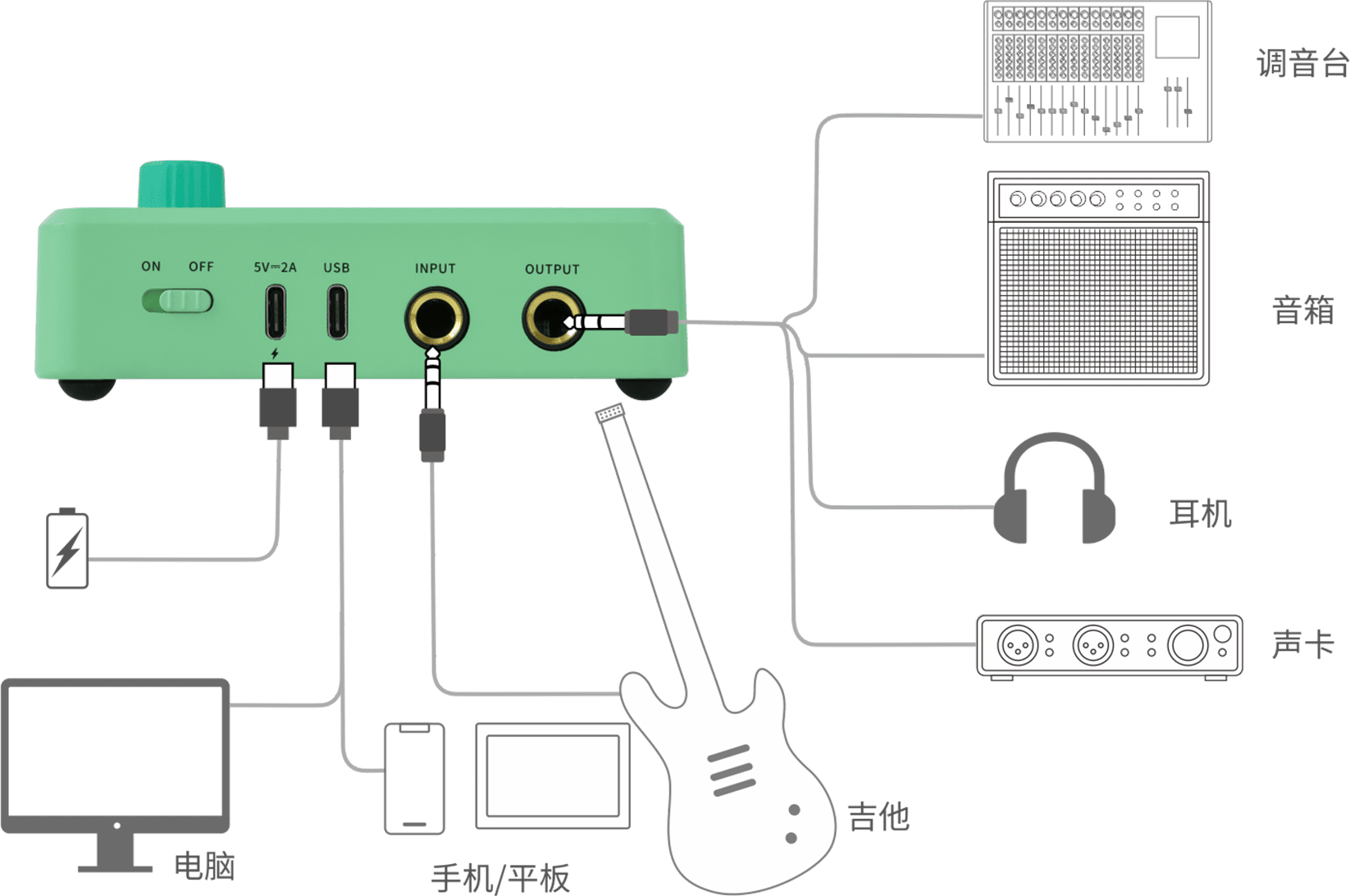

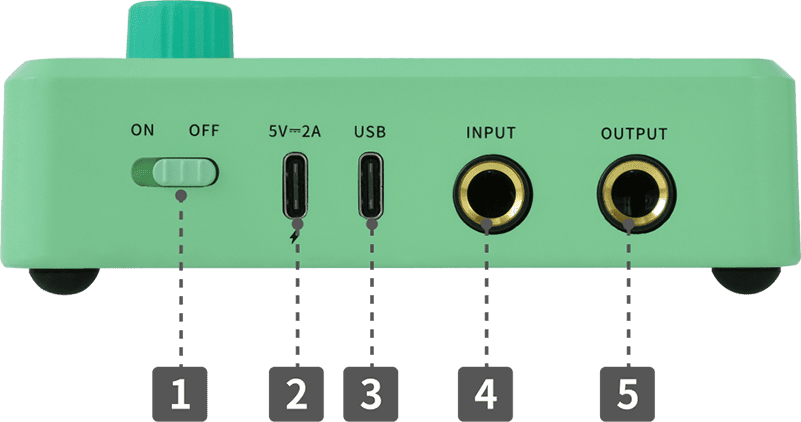

Power Switch

Turns the device On or Off.

5V 2A USB-CPower Port

Connecttoa power source usinga compliant poweradapter.

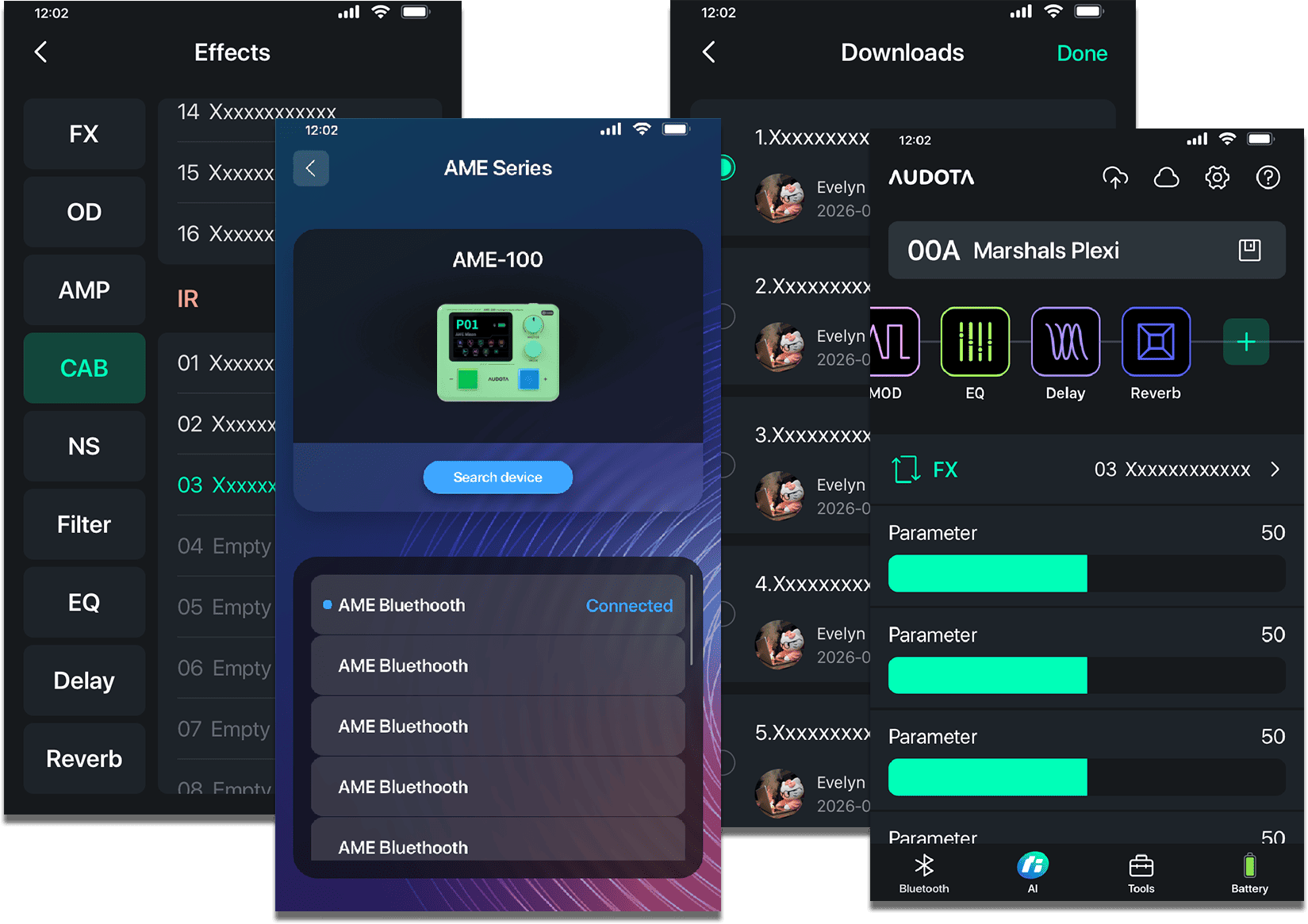

USB-C Port

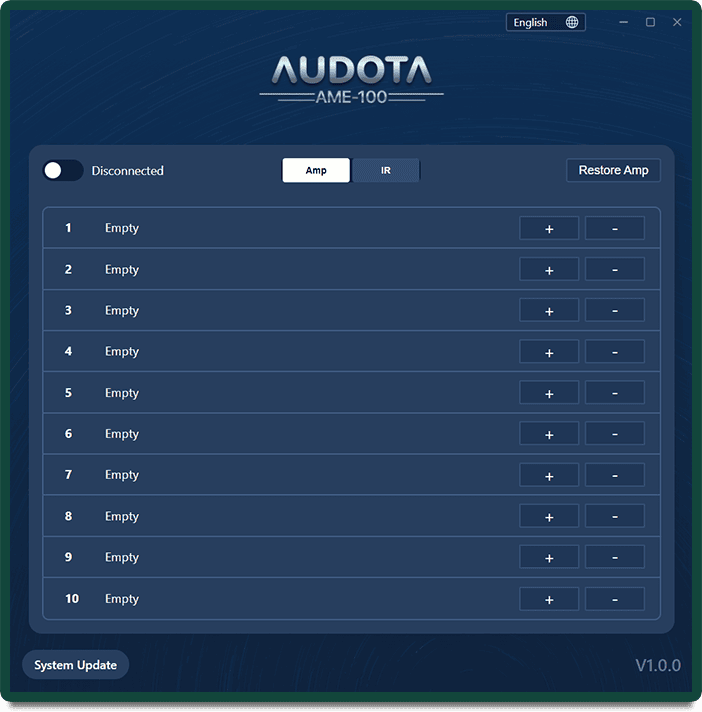

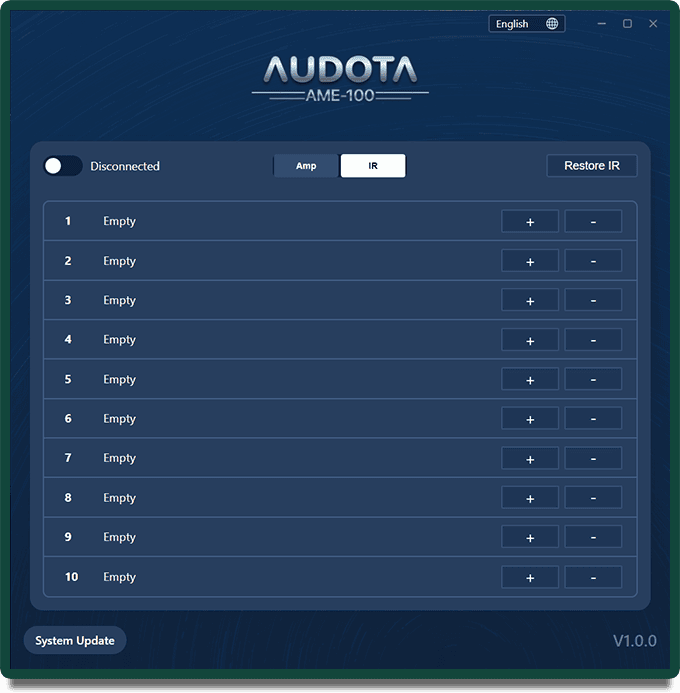

Used for connectingto PC management software and for OTG digital recordingfunctions.

INPUT Jack

1/4" instrument input jack.

OUTPUT Jack

1/4" unbalanced output jack, compatible with stereo headphones.

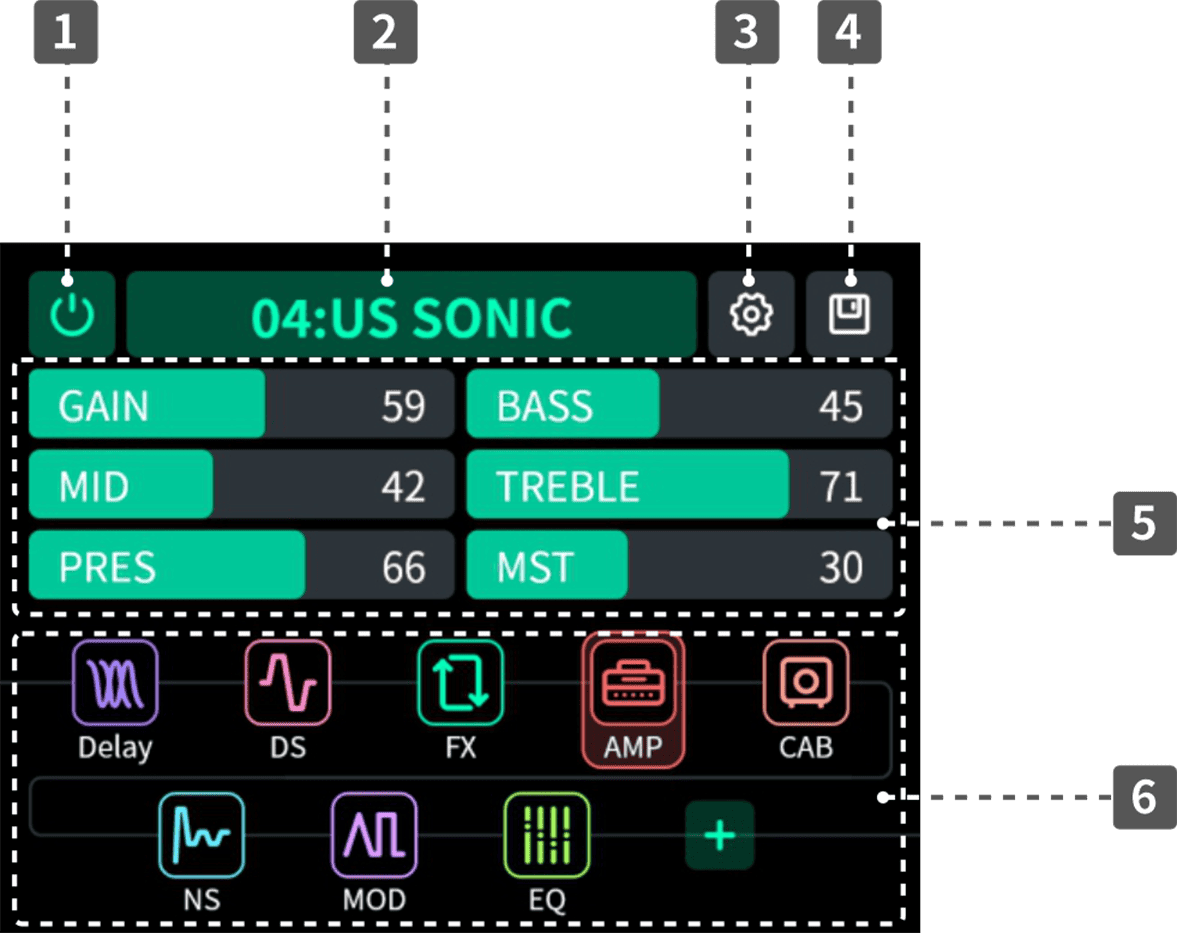

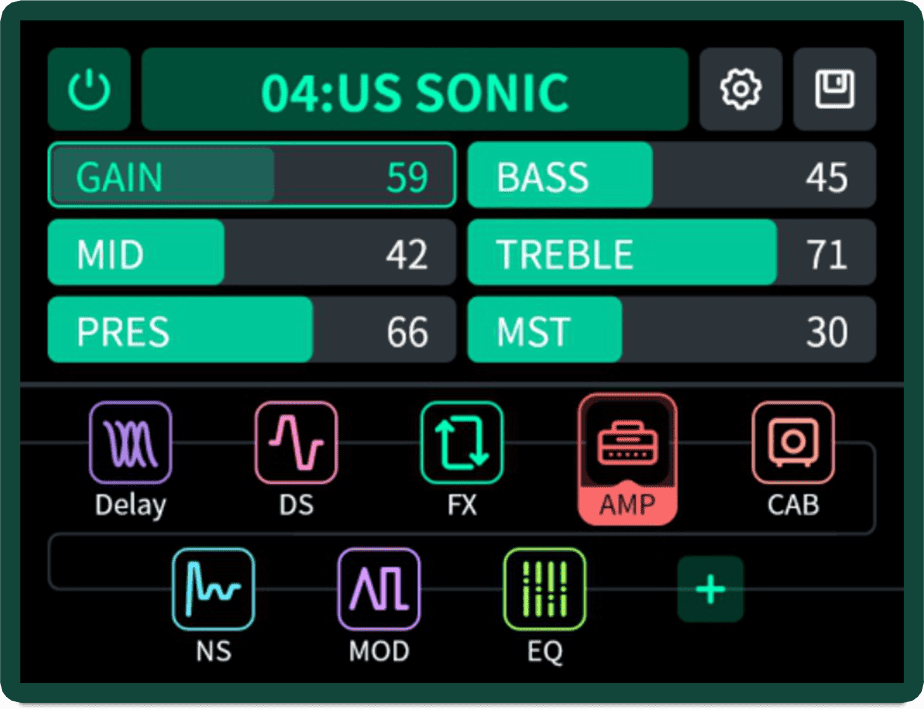

Effect Module Switch

Use the EDlT encoder to toggle the effect module On or Off.

Effect Module Name

Displays the current module name.Use the EDlT encoder to enter the module selection menu.

System Settings

Use the EDlT encoder to access System Settings.

Save Button

Use the EDlT encoder to enter the Preset Save interface.

Parameter Area

Displays the parameters ofthe current effect. Use the EDlT encoder to edit values.

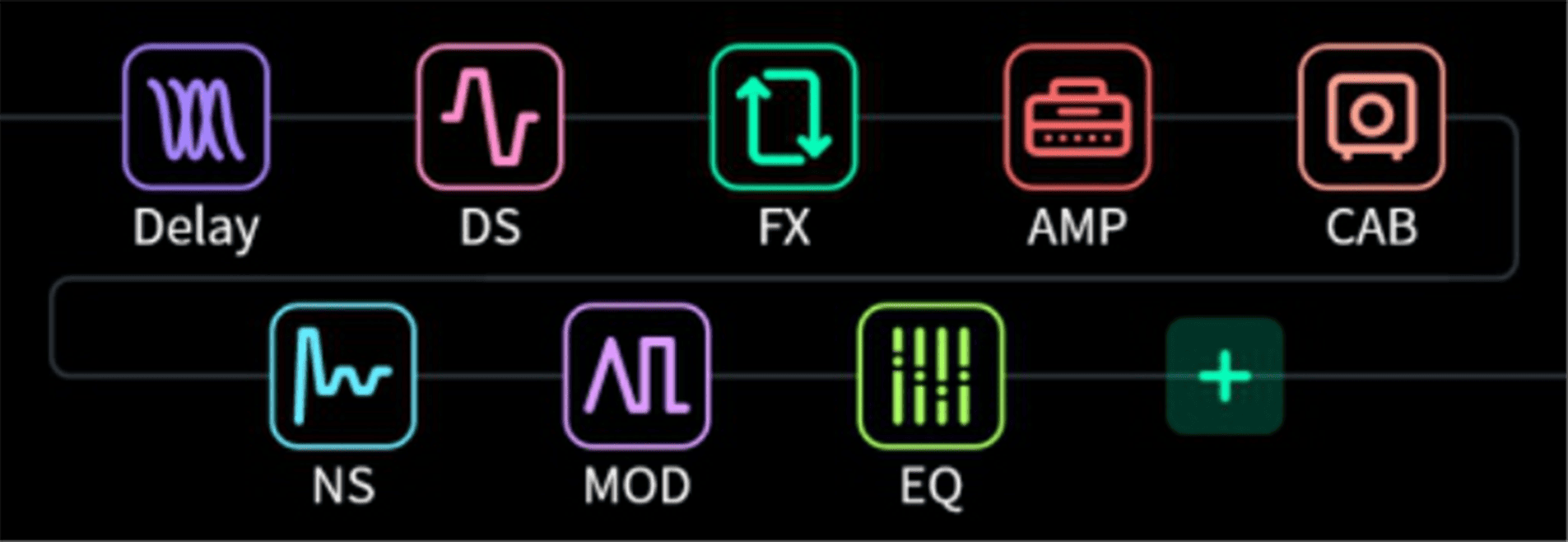

Effect Chain Area

Displays the current preset's signal chain.Use the EDlT encoder to add modulesoradiust the order.
